The logger component automatically logs all log messages through the
serial port and through MQTT topics. By default, all logs with a
severity higher than
DEBUG will be shown. Decreasing the log level
can help with the performance of the application and memory size.
# Example configuration entry logger: level: DEBUG
baud_rate (Optional, int): The baud rate to use for the serial UART port. Defaults to
115200. Set to
0to disable logging via UART.
level (Optional, string): The global log level. Any log message with a lower severity will not be shown. Defaults to
logs (Optional, mapping): Manually set the log level for a specific component or tag. See Manual Log Levels for more information.
id (Optional, ID): Manually specify the ID used for code generation.
tx_buffer_size (Optional, int): The size of the buffer used for log messages. Decrease this if you’re having memory problems. Defaults to
hardware_uart (Optional, string): The Hardware UART to use for logging. Defaults to
esp8266_store_log_strings_in_flash (Optional, boolean): If set to false, disables storing log strings in the flash section of the device (uses more memory). Defaults to true.
on_message (Optional, Automation): An action to be performed when a message is to be logged. The variables
const char* tagand
const char* messageare available for lambda processing.
deassert_rts_dtr (Optional, boolean): Deasserts RTS/DTR when opening log over UART. This is useful if RTS/DTR signals are directly connected to the reset pin or strapping pins. Note: Deassert typically means high on TTL level since RTS/DTR are usually low active signals. Defaults to
The logger component makes use of platform-specific hardware UARTs for serial logging.
By default, the logger will occupy
UART0. The ESP32 has three hardware UARTs, all of
which can be used for both transmit and receive. The ESP8266 only has two hardware UARTs,
one of which is transmit-only. The ESP8266
UART0 can also be ‘swapped’ to TX/RX on the
CTS/RTS pins, if you need to use GPIO1 and GPIO3 for something else.
Possible Hardware UART configurations:
UART0- TX: GPIO1, RX: GPIO3
UART0_SWAP- TX: GPIO15, RX: GPIO13 (Only on ESP8266)
UART1- TX: GPIO2, RX: None (Only on ESP8266)
UART1- TX: GPIO9, RX: GPIO10 (Only on ESP32)
UART2- TX: GPIO16, RX: GPIO17 (Only on ESP32 but not ESP32S2, ESP32S3 or ESP32C3)
USB_CDC- uses the USB CDC driver (Only on ESP32S2 and ESP32S3)
USB_SERIAL_JTAG- uses the USB Serial/JTAG driver (Only on ESP32S3 and ESP32C3)
Possible log levels are (sorted by severity):
No messages are logged.
With this log level, only errors are logged. Errors are issues that prevent the ESP from working correctly. Color: red
With this log level, warnings and errors are logged. Warnings are issues like invalid readings from sensors that ESPHome can recover from. Color: yellow
With this log level, everything up to info messages are logged; so errors, warnings and info. Color: green
Everything up to this log level is logged. Debug messages include the current readings from a sensor and status messages. Color: cyan
Like debug, but a few more messages that are usually deemed to be spam are also included. Color: grey
All internal messages are logged. Including all the data flowing through data buses like I²C, SPI or UART. Warning: May cause the device to slow down and have trouble staying connecting due to amount of generated messages. Color: white

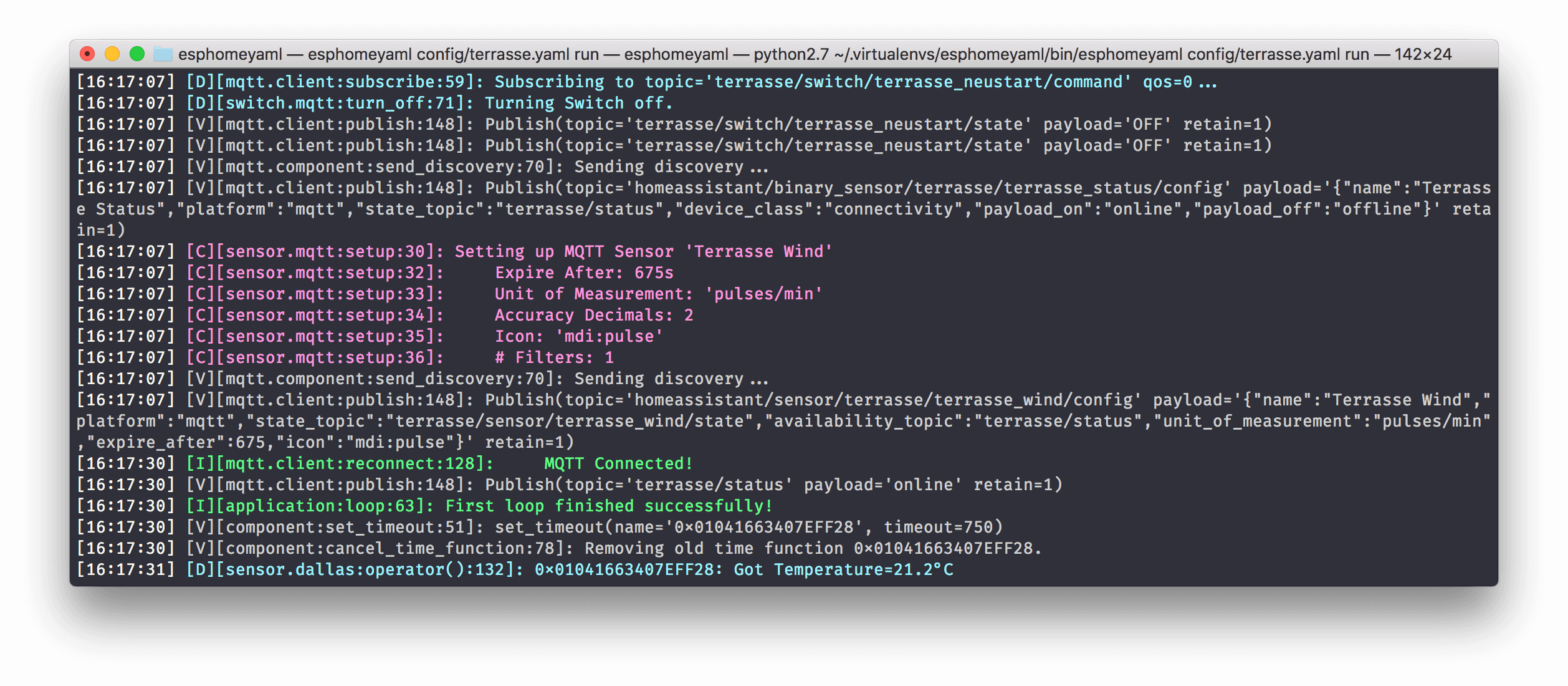

Manual Tag-Specific Log Levels¶
If some component is spamming the logs and you want to manually set the log level for it, first identify the tag of the log messages in question and then disable them in your configuration.
Suppose we want to have verbose log messages globally, but the MQTT
client spams too much. In the following example, we’d first see that the
tag of the MQTT client is
mqtt.client (before the first colon) and
the tag for MQTT components is
Next, we can manually set the log levels in the configuration like this:
logger: level: VERBOSE logs: mqtt.component: DEBUG mqtt.client: ERROR
Please note that the global log level determines what log messages are
saved in the binary. So for example an
INFO global log message will
DEBUG log statements from the binary in order to conserve
space. This however means that you cannot set tag-specific log levels
that have a lower severity than the global log level.
Print a formatted message to the logs.
format option, you can use
printf-style formatting (see Formatted Text).
on_...: then: - logger.log: "Hello World" # Formatted: - logger.log: format: "The temperature sensor reports value %.1f and humidity %.1f" args: [ 'id(temperature_sensor).state', 'id(humidity_sensor).state' ]
format (Required, string): The format for the message in printf-style.
args (Optional, list of lambda): The optional arguments for the format message.
level (Optional, string): The log level to print the message with. Defaults to
tag (Optional, string): The tag (seen in front of the message in the logs) to print the message with. Defaults to
This automation will be triggered when a new message is added to the log.
In lambdas you can get the message, log level and tag from the trigger
const char *),
const char *).
logger: # ... on_message: level: ERROR then: - mqtt.publish: topic: some/topic payload: !lambda |- return "Triggered on_message with level " + to_string(level) + ", tag " + tag + " and message " + message;
Logging will not work in the
on_message trigger. You can’t use the logger.log action
ESP_LOGx logging macros in this automation.
