Xiaomi Mijia BLE Sensors

The xiaomi_ble sensor platform lets you track the output of Xiaomi Bluetooth Low Energy devices using the ESP32 Bluetooth Low Energy Tracker Hub. This component will track, for example, the temperature, humidity, moisture, conductivity, illuminance, formaldehyde, mosquito tablet and battery level of the device every time the sensor sends out a BLE broadcast. Contrary to other implementations, xiaomi_ble listense passively to advertisement packets and does not pair with the device. Hence ESPHome has no impact on battery life.

Supported Devices

HHCCJCY01

MiFlora, Huahuacaocao, measures temperature, moisture, ambient light and nutrient levels in the soil.

../../_images/xiaomi_hhccjcy01.jpg

Configuration example:

sensor:
  - platform: xiaomi_hhccjcy01
    mac_address: '94:2B:FF:5C:91:61'
    temperature:
      name: "Xiaomi HHCCJCY01 Temperature"
    moisture:
      name: "Xiaomi HHCCJCY01 Moisture"
    illuminance:
      name: "Xiaomi HHCCJCY01 Illuminance"
    conductivity:
      name: "Xiaomi HHCCJCY01 Soil Conductivity"
    battery_level:
      name: "Xiaomi HHCCJCY01 Battery Level"

Note

Newer versions of HHCCJCY01 ship with firmware 3.2.1, and they don’t send the battery level data anymore.

GCLS002

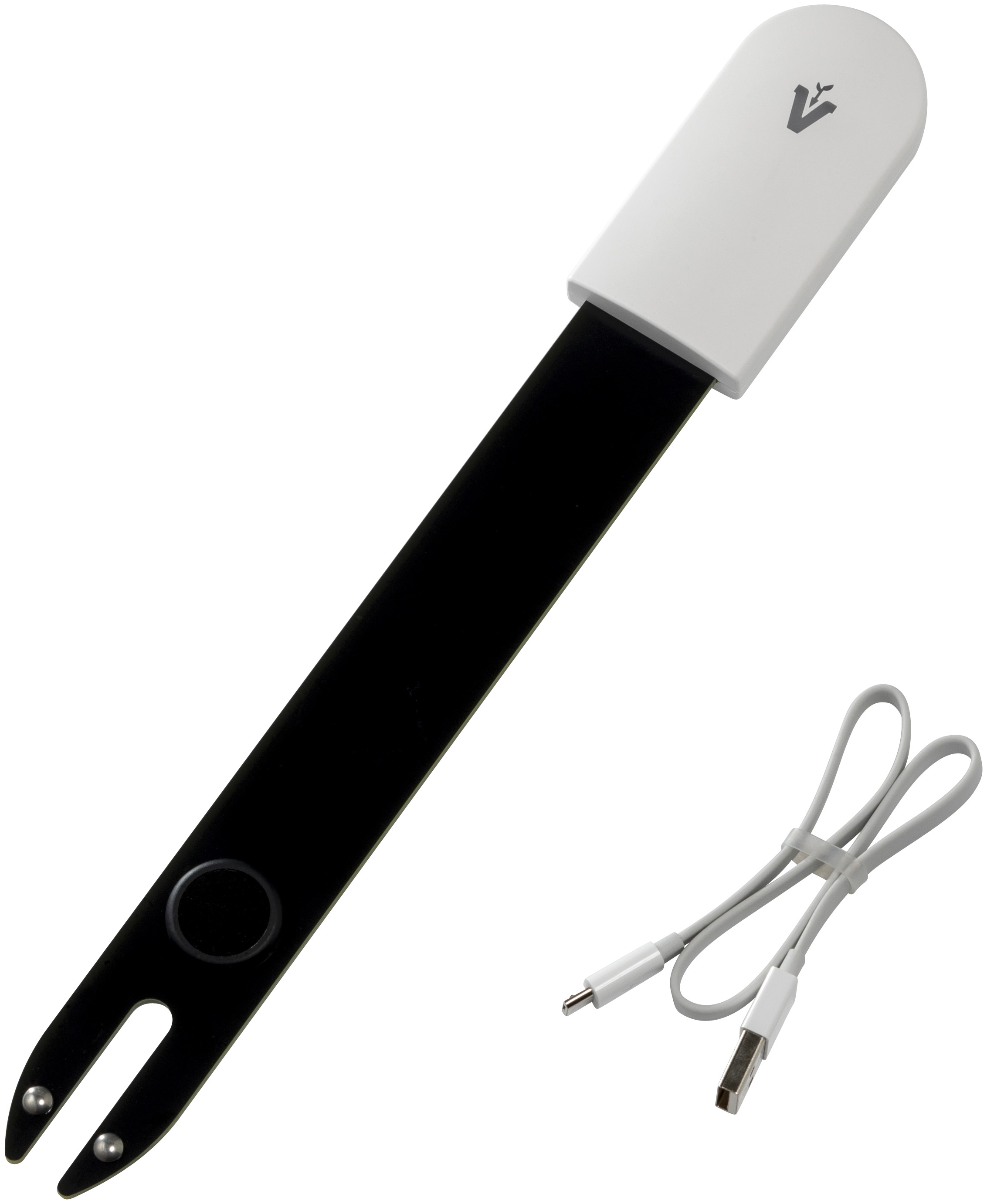

VegTrug Grow Care Garden, Takasho, suitable for outside, similar to the MiFlora.

../../_images/xiaomi_gcls002.jpg

Configuration example:

sensor:
  - platform: xiaomi_gcls002
    mac_address: "94:2B:FF:5C:91:61"
    temperature:
      name: "GCLS02 Temperature"
    moisture:
      name: "GCLS02 Moisture"
    conductivity:
      name: "GCLS02 Soil Conductivity"
    illuminance:
      name: "GCLS02 Illuminance"

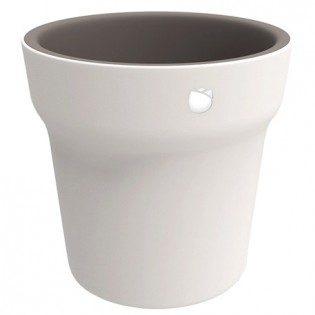

HHCCPOT002

FlowerPot, Huahuacaocao, RoPot, broadcasts moisture and conductivity

../../_images/xiaomi_hhccpot002.jpg

Configuration example:

sensor:
  - platform: xiaomi_hhccpot002
    mac_address: "94:2B:FF:5C:91:61"
    moisture:
      name: "HHCCPOT002 Moisture"
    conductivity:
      name: "HHCCPOT002 Soil Conductivity"

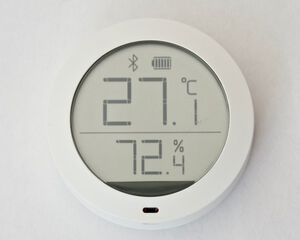

LYWSDCGQ

Hygro thermometer, round body, segment LCD, broadcasts temperature, humidity and battery level.

../../_images/xiaomi_lywsdcgq.jpg

Configuration example:

sensor:
  - platform: xiaomi_lywsdcgq
    mac_address: "7A:80:8E:19:36:BA"
    temperature:
      name: "LYWSDCGQ Temperature"
    humidity:
      name: "LYWSDCGQ Humidity"
    battery_level:
      name: "LYWSDCGQ Battery Level"

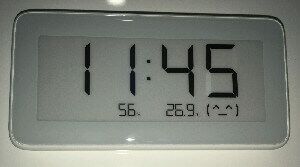

LYWSD02

Hygro thermometer, rectangular body, e-ink display, broadcasts temperature and humidity values, no battery status

../../_images/xiaomi_lywsd02.jpg

Configuration example:

sensor:
  - platform: xiaomi_lywsd02
    mac_address: "3F:5B:7D:82:58:4E"
    temperature:
      name: "LYWSD02 Temperature"
    humidity:
      name: "LYWSD02 Humidity"

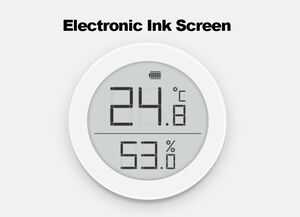

CGG1

Hygro thermometer, round body, e-ink display

../../_images/xiaomi_cgg1.jpg

Configuration example:

sensor:
  - platform: xiaomi_cgg1
    mac_address: "7A:80:8E:19:36:BA"
    temperature:
      name: "CGG1 Temperature"
    humidity:
      name: "CGG1 Humidity"
    battery_level:
      name: "CGG1 Battery Level"

LYWSD03MMC

Hygro thermometer, small square body, segment LCD, encrypted, broadcasts temperature, humidity and battery status. Requires a bindkey in order to decrypt the received data (see Obtaining The Bindkey).

../../_images/xiaomi_lywsd03mmc.jpg

Configuration example:

sensor:
  - platform: xiaomi_lywsd03mmc
    mac_address: "A4:C1:38:B1:CD:7F"
    bindkey: "eef418daf699a0c188f3bfd17e4565d9"
    temperature:
      name: "LYWSD03MMC Temperature"
    humidity:
      name: "LYWSD03MMC Humidity"
    battery_level:
      name: "LYWSD03MMC Battery Level"

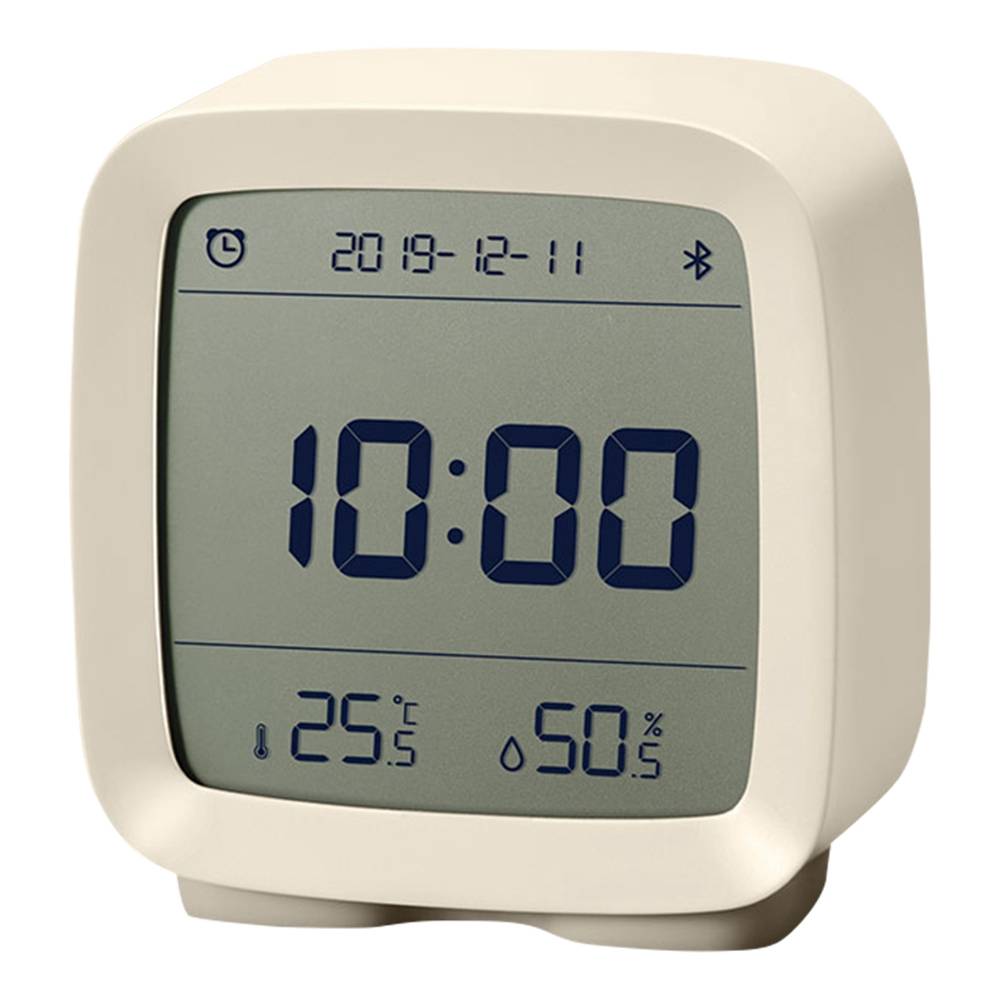

CGD1

Cleargrass (Qingping) alarm clock, segment LCD, encrypted, broadcasts temperature, humidity and battery status. Requires a bindkey in order to decrypt the received data (see Obtaining The Bindkey).

../../_images/xiaomi_cgd1.jpg

Configuration example:

sensor:
  - platform: xiaomi_cgd1
    mac_address: "A4:C1:38:8C:34:B7"
    bindkey: "fe39106baeedb7c801e3d63c4396f97e"
    temperature:
      name: "CGD1 Temperature"
    humidity:
      name: "CGD1 Humidity"
    battery_level:
      name: "CGD1 Battery Level"

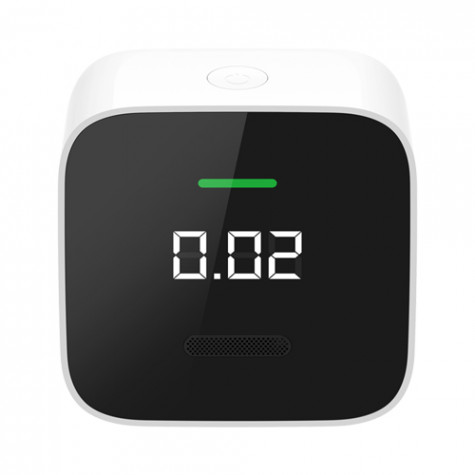

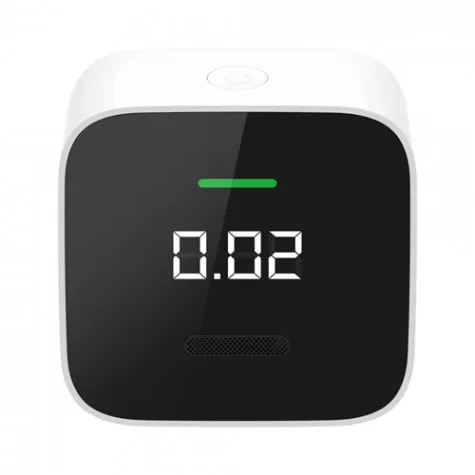

JQJCY01YM

Xiaomi (Honeywell) formaldehyde sensor, OLED display, broadcasts temperature, humidity, formaldehyde concentration (mg/m³) and battery status.

../../_images/xiaomi_jqjcy01ym.jpg

Configuration example:

sensor:
  - platform: xiaomi_jqjcy01ym
    mac_address: "7A:80:8E:19:36:BA"
    temperature:
      name: "JQJCY01YM Temperature"
    humidity:
      name: "JQJCY01YM Humidity"
    formaldehyde:
      name: "JQJCY01YM Formaldehyde"
    battery_level:
      name: "JQJCY01YM Battery Level"

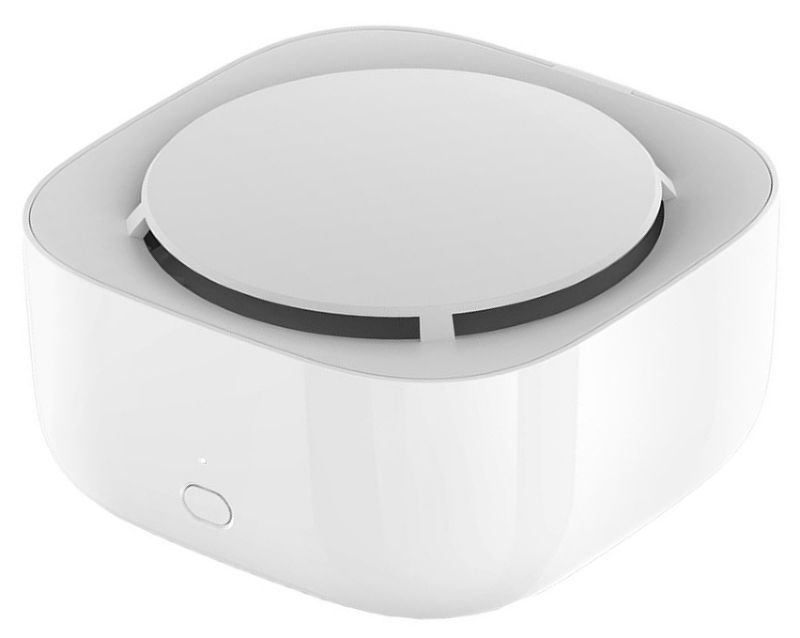

WX08ZM

Mosquito Repellent Smart Version, broadcasts the tablet resource level, on/off state and battery level, implemented as a hybrid sensor, needs both sensor and binary_sensor in config.

../../_images/xiaomi_wx08zm.jpg

Configuration example:

sensor:

binary_sensor:
  - platform: xiaomi_wx08zm
    mac_address: "74:a3:4a:b5:07:34"
    tablet:
      name: "WX08ZM Mosquito Tablet"
    battery_level:
      name: "WX08ZM Battery Level"

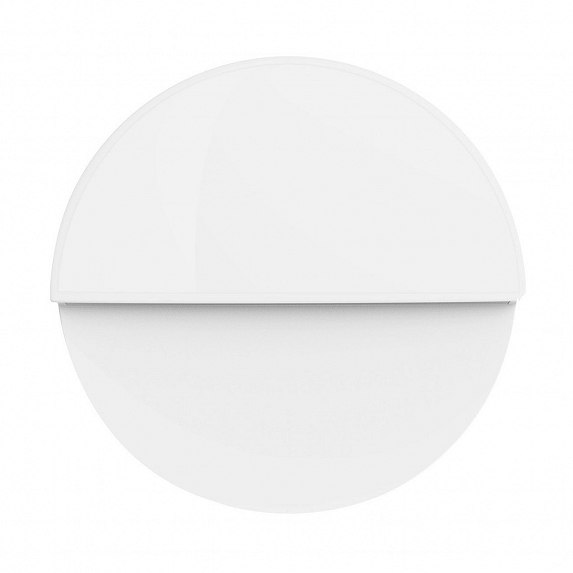

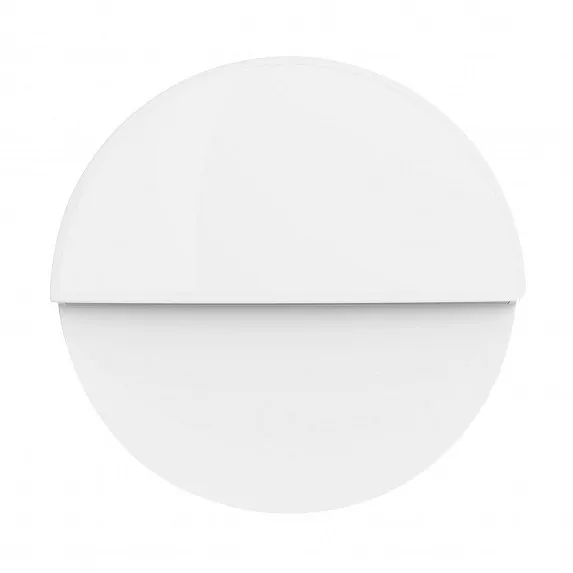

MUE4094RT

Xiaomi Philips BLE night light, broadcasts motion detection (detected/clear, on/off), default timeout is 5s, implemented as a hybrid sensor, needs both sensor and binary_sensor in config.

../../_images/xiaomi_mue4094rt.jpg

Configuration example:

sensor:

binary_sensor:
  - platform: xiaomi_mue4094rt
    name: "MUE4094RT Night Light"
    mac_address: "7A:80:8E:19:36:BA"
    timeout: "5s"

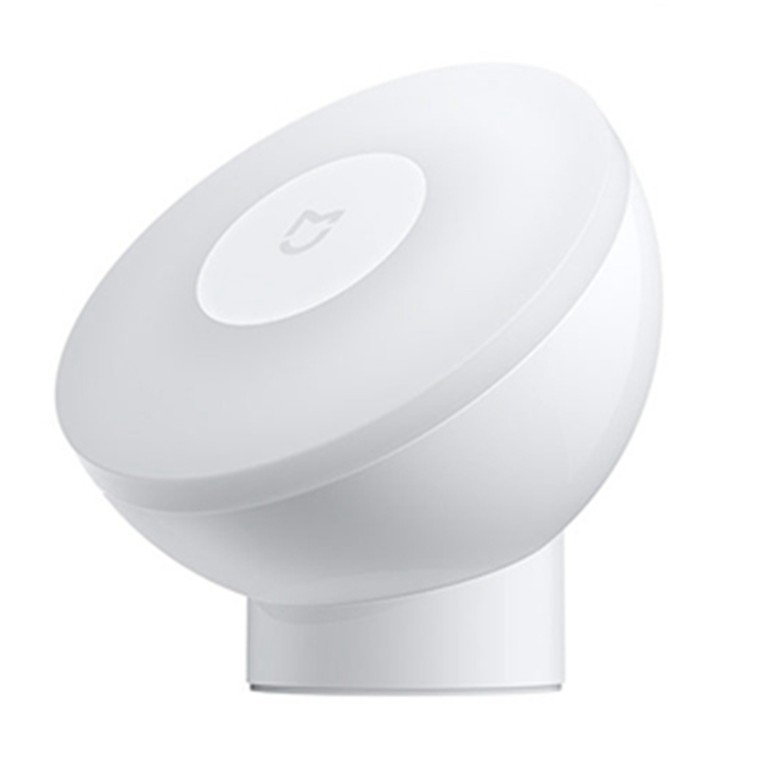

MJYD02YL-A

Xiaomi Yeelight night light, in-shape replacement of MJYD02YL with BLE, broadcasts light on/off status, motion detection, idle time since last motion event and battery status. Requires a bindkey in order to decrypt the received data (see Obtaining The Bindkey). Implemented as a hybrid sensor, needs both sensor and binary_sensor in config.

../../_images/xiaomi_mjyd02yla.jpg

Configuration example:

sensor:

binary_sensor:
  - platform: xiaomi_mjyd02yla
    name: "MJYD02YL-A Night Light"
    mac_address: "50:EC:50:CD:32:02"
    bindkey: "48403ebe2d385db8d0c187f81e62cb64"
    idle_time:
      name: "MJYD02YL-A Idle Time"
    light:
      name: "MJYD02YL-A Light Status"
    battery_level:
      name: "MJYD02YL-A Battery Level"

Setting Up Devices

Required:

  • mac_address (MAC Address): The MAC address of the device.

  • bindkey (string, 32 characters, case insensitive): The key to decrypt the BLE advertisements for encrypted sensor types

Optional with name, id (ID) and all other options from Sensor:

  • temperature

  • humidity

  • moisture

  • illuminance

  • conductivity

  • tablet

  • formaldehyde

  • battery_level

To find the MAC Address so that ESPHome can identify the device, you can create a simple configuration without any sensor entries:

esp32_ble_tracker:

After uploading, the ESP32 will immediately try to scan for BLE devices. When it detects a new sensor, it will automatically parse the BLE message print a message like this one:

Found device A4:C1:38:4E:16:78 RSSI=-78
  Address Type: PUBLIC
  Name: 'LYWSD03MMC'

It can sometimes take some time for the first BLE broadcast to be received. Once the device has been found, copy the address A4:C1:38:4E:16:78 into a new platform entry like shown in the example configurations.

Obtaining The Bindkey

To set up an encrypted device such as the LYWSD03MMC or CGD1, you first need to obain the bind key. The xiaomi_ble sensor component is not able to automatically generate a bind key, so you need to use the original Mi Home app to add the sensor once (there are efforts to generate a bindkey without the need for packet sniffing, but it’s not working correctly yet). While adding the device, a new key is generated and uploaded into the Xiaomi cloud and to the device itself. Currently a chinese server needs to be selected as the rest of the world doesn’t support most of these devices yet. Once generated, the key will not change again until the device is removed and re-added in the Xiaomi app.

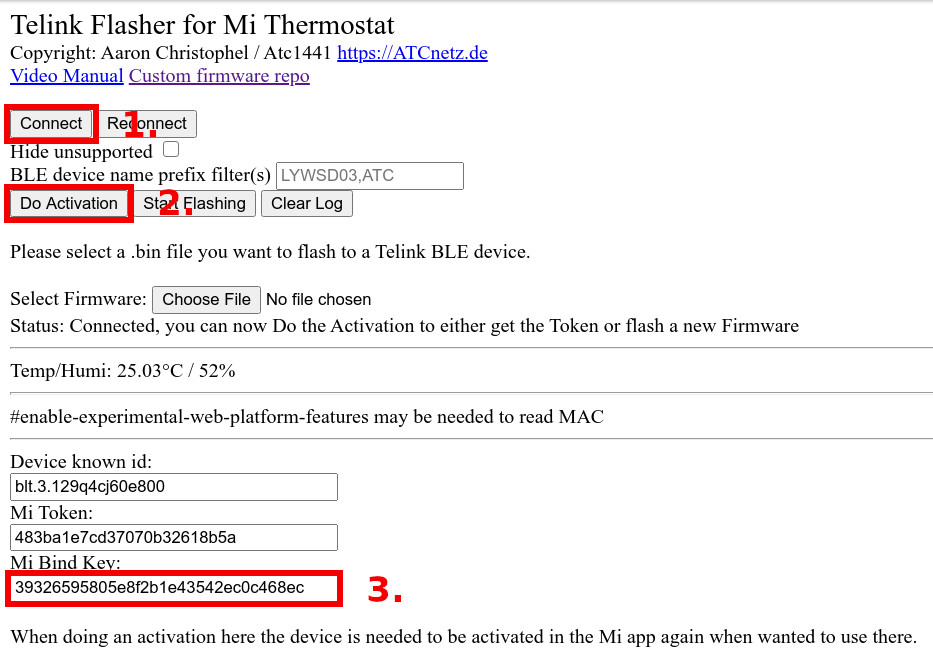

In order to obtain the bind key, a SSL packet sniffer needs to be setup on either an Android phone or the iPhone. A good choice for Android is the Remote PCAP in combination with Wireshark. A tutorial on how to setup the Remote PCAP packet sniffer can be found here. Instructions how to obtain the key using an iPhone are here. Once the traffic between the Mi Home app and the Xiaomi has been recorded, the bind key will show in clear text:

packet: POST /app/device/bltbind

"data" = "{"did":"blt.3.129q4nasgeg00","token":"20c665a7ff82a5bfb5eefc36","props":[{"type":"prop","key":"bind_key","value":"cfc7cc892f4e32f7a733086cf3443cb0"},   {"type":"prop","key":"smac","value":"A4:C1:38:8C:34:B7"}]}"

The bind_key is the 32 digits “value” item in the above output which needs to be inserted into the config file.
