AirThings BLE Sensors¶
airthings_wave_mini sensor platforms lets you track the output of AirThings Bluetooth Low Energy devices.
This component will track radon, airborne chemicals, CO2, temperature and humidity and others depending on the device sensors.
AirThings devices can be found using the
airthings_ble ble scanner.
To find out your device’s MAC address, add the following to your ESPHome configuration:
logger: level: DEBUG # Required for the tracker to show the device esp32_ble_tracker: airthings_ble:
The device will then listen for nearby devices, and display a message like this one:
[D][airthings_ble:019]: Found AirThings device Serial: 123456789 (MAC: 01:02:03:04:05:06)
Once the device is found, remove the
airthings_ble device tracker from your configuration and take note of the device MAC address, and use it when configuring a sensor below.

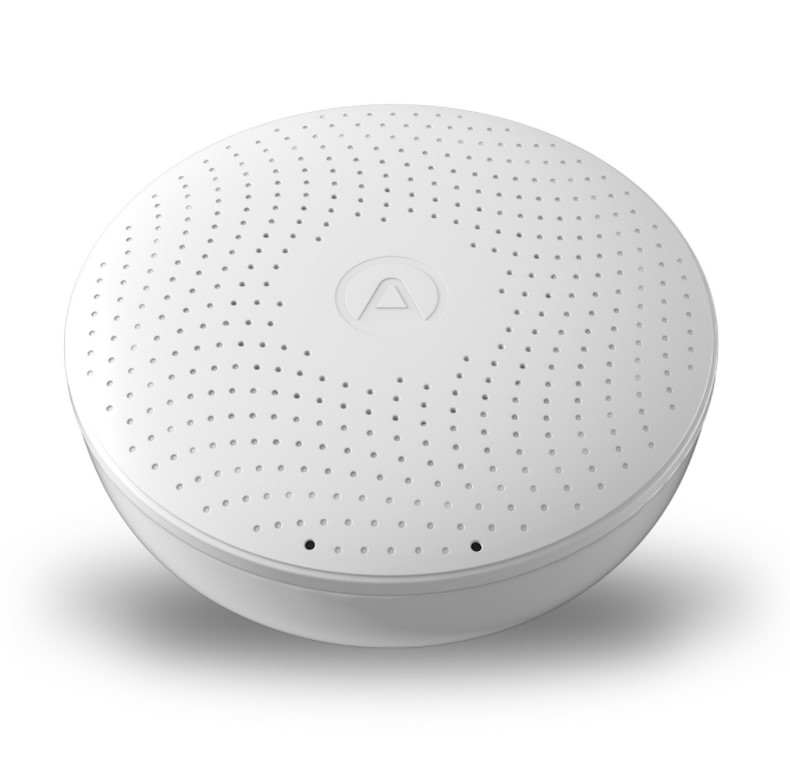

Airthings Wave Plus Sensor¶
AirThings Wave Plus tracks radon (24h and long term), airborne chemicals, CO2, temperature, atmospheric pressure and humidity.
sensor: - platform: airthings_wave_plus ble_client_id: airthings01 update_interval: 5min # default temperature: name: "WavePlus Temperature" radon: name: "WavePlus Radon" radon_long_term: name: "WavePlus Radon Long Term" pressure: name: "WavePlus Pressure" humidity: name: "WavePlus Humidity" co2: name: "WavePlus CO2" tvoc: name: "WavePlus VOC" ble_client: - mac_address: 01:02:03:04:05:06 id: airthings01 esp32_ble_tracker:

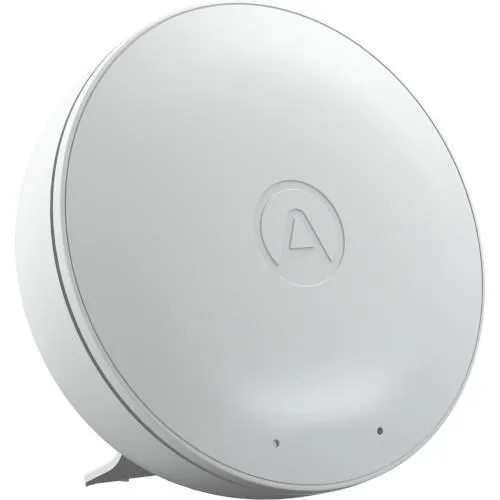

Airthings Wave Mini Sensor¶
AirThings Wave Mini tracks airborne chemicals, temperature, pressure and humidity.
sensor: - platform: airthings_wave_mini ble_client_id: airthingsmini update_interval: 5min # default temperature: name: "WaveMini Temperature" pressure: name: "WaveMini Pressure" humidity: name: "WaveMini Humidity" tvoc: name: "WaveMini VOC" ble_client: - mac_address: 01:02:03:04:05:06 id: airthingsmini esp32_ble_tracker:
The sensor uses active polling of devices every 5 minutes as per the device reported internal refresh timeout.
