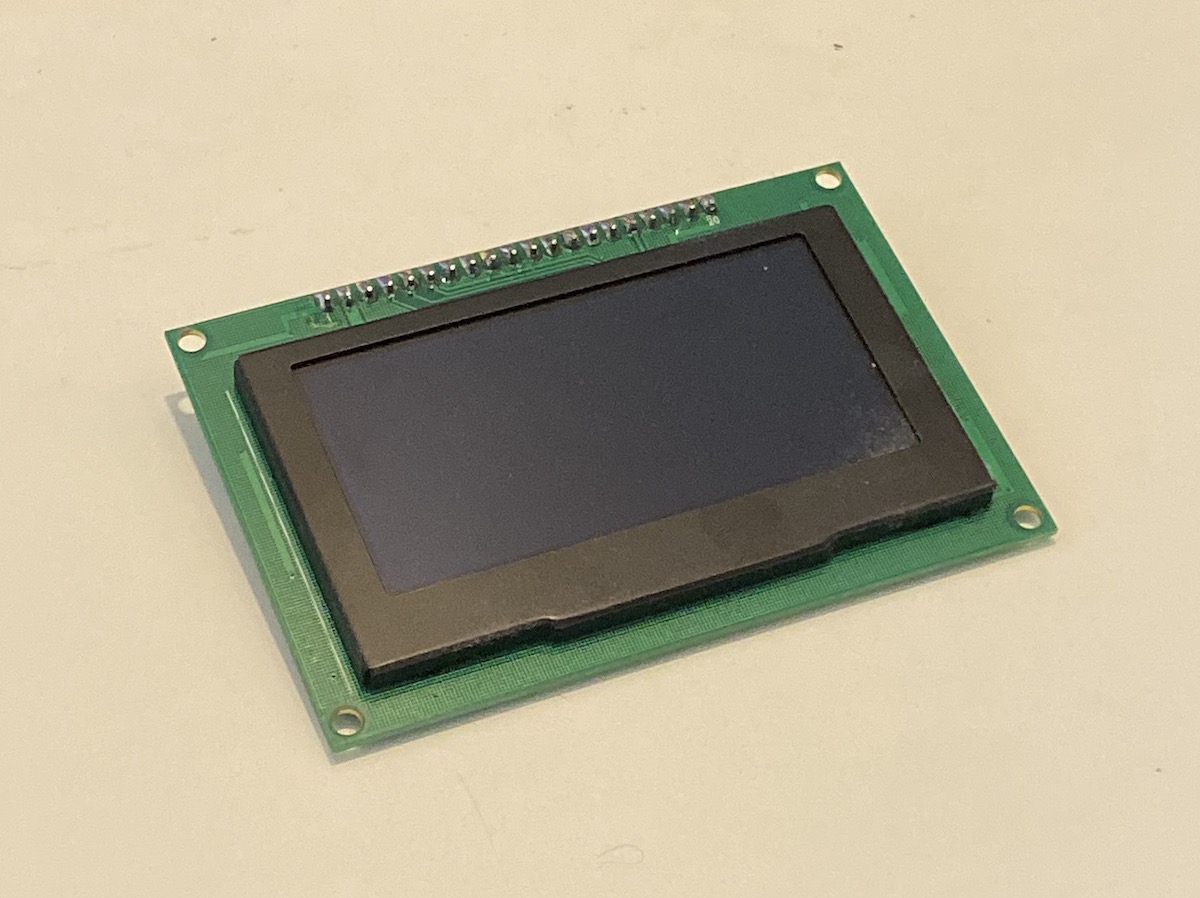

SSD1325/7 OLED Display¶
Connect CLK, DIN, CS, DC, and RST to pins on your ESP. For power, connect VCC to 3.3V and GND to GND. Note that two jumper resistors on the back of the display PCB may need to be moved to put the display into SPI mode. Adafruit has a guide that explains how to do this, if necessary.
# Example configuration entry spi: clk_pin: D5 mosi_pin: D7 display: - platform: ssd1325_spi model: "SSD1325 128x64" reset_pin: D0 cs_pin: D8 dc_pin: D1 lambda: |- it.print(0, 0, id(font), "Hello World!");
model (Required): The model of the display. Options are:
SSD1325 128x32- SSD1325 with 128 columns and 32 rows
dc_pin (Required, Pin Schema): The DC pin.
reset_pin (Optional, Pin Schema): The RESET pin.
cs_pin (Optional, Pin Schema): The pin on the ESP that that the CS line is connected to. The CS line can be connected to GND if this is the only device on the SPI bus.
update_interval (Optional, Time): The interval to re-draw the screen. Defaults to
pages (Optional, list): Show pages instead of a single lambda. See Display Pages.
id (Optional, ID): Manually specify the ID used for code generation.
To utilize the grayscale capabilities of this display module, add a
color: section to your YAML configuration;
please see color for more details. As this is a grayscale display, it only uses the white color
element as shown below.
To use grayscale in your lambda:
color: - id: medium_gray white: 50% ... display: ... lambda: |- it.rectangle(0, 0, it.get_width(), it.get_height(), id(medium_gray));
To bring in grayscale images:
image: - file: "image.jpg" id: my_image resize: 120x120 type: GRAYSCALE ... display: ... lambda: |- it.image(0, 0, id(my_image));
In this case, the image will be converted to grayscale (regardless of its original format) and rendered as such when drawn on the display. Note that the original image may require some adjustment as not all images immediately convert nicely to the 4-bit grayscale format this display supports.
Note that if
type: GRAYSCALE is omitted, the image will render as a binary image (no grayscale); in this
case, a color attribute may be passed to the
image() method as follows:
image: - file: "image.jpg" id: my_image resize: 120x120 ... display: ... lambda: |- it.image(0, 0, id(medium_gray), id(my_image));
This will draw the complete image with the given shade of gray.
To create a new color as needed in code:
display: ... lambda: |- float white_intensity = 0.5; Color variable_gray(0, 0, 0, white_intensity); it.rectangle(0, 0, it.get_width(), it.get_height(), variable_gray);
The last argument of the
Color constructor is the intensity of the white element; it is a percentage
(value of range 0 to 1). It may be defined by another variable so it is adjustable in code.
