CAP1188 Capacitive Touch Sensor¶

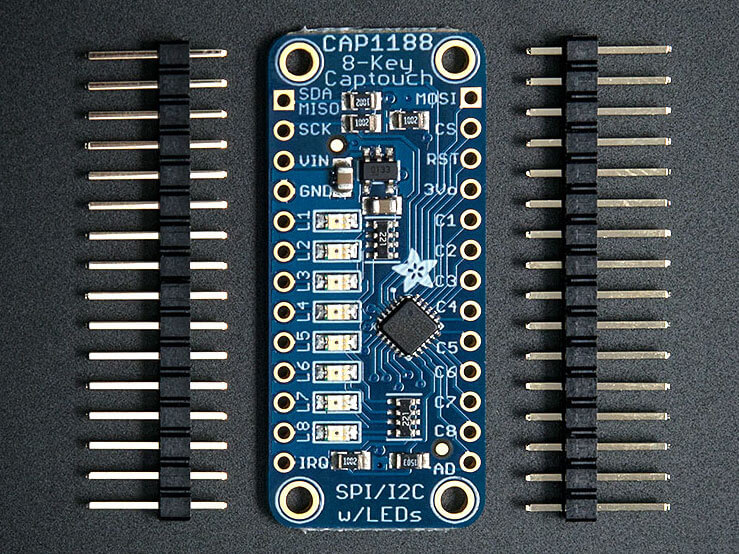

cap1188 sensor platform allows you to use your CAP1188
Adafruit) Capacitive Touch Sensor with ESPHome. The I²C bus is
required to be set up in your configuration for this sensor to work.
# Example configuration entry cap1188: id: cap1188_component address: 0x29 reset_pin: 14 touch_threshold: 0x40 allow_multiple_touches: true binary_sensor: - platform: cap1188 id: touch_key0 channel: 0 name: "Touch Key 0"
The configuration is made up of two parts: The central component, and individual Binary sensors per channel.
address (Optional, integer): The I²C address of the sensor. Defaults to
id (Optional, ID): Set the ID of this sensor.
reset_pin (Optional, Pin): Set the pin that is used to reset the CAP1188 board on boot.
- touch_threshold (Optional, integer): The touch threshold for all channels. This defines the sensitivity for touch detection.
0x01: Maximum sensitivity - Most sensitive to touch
0x20: Default sensitivity
0x40: Medium sensitivity (I used this sensitivity when being used through a 3mm sheet of plastic)
0x80: Minimum sensitivity - Least sensitive to touch
allow_multiple_touches (Optional, boolean): Whether to allow multitouch. Defaults to off.
cap1188 binary sensor allows you to use your CAP1188 with ESPHome.
First, setup a Component/Hub and then use this binary sensor platform to create individual
binary sensors for each touch sensor.
name (Optional, string): The name for the binary sensor.
cap1188_id (Optional, ID): The ID of the CAP1188 defined above. Useful for multiple CAP1188’s on the I²C bus.
id (Optional, ID): Manually specify the ID used for code generation.
channel (Required, integer): The channel number the CAP1188 the touchkey is connected to.
All other options from Binary Sensor.
SPI is not currently supported. I²C must be used at this time.
