ESP32 Water Leak Detector (with notification)

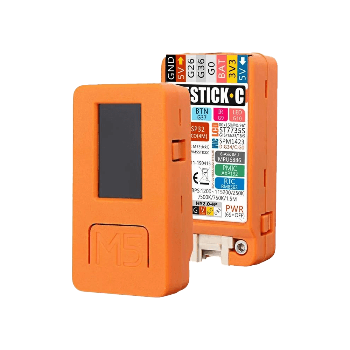

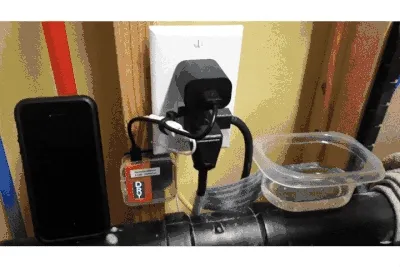

Using the ESP32’s capacitive touch GPIOs, it’s relatively easy to build a water leak detector using ESPhome. M5StickC was chosen as a platform due to the integrated Grove connector for clean connections and the fact it’s well housed. The built-in display is a bonus, but not strictly necessary. Notifications are performed via HomeAssistant’s ‘alert’ and ‘notify’ facilities, which send via Pushover to iOS & Android.

../_images/leak-detector-m5stickC_LeakDetected.gif

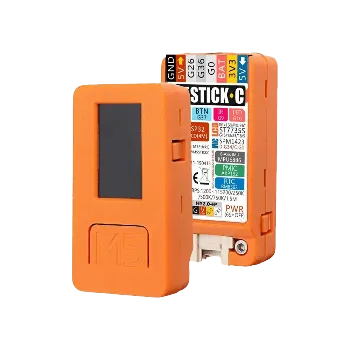

Things you’ll need

../_images/leak-detector-m5stickC-m5stickC.png
../_images/leak-detector-m5stickC_probe.jpg

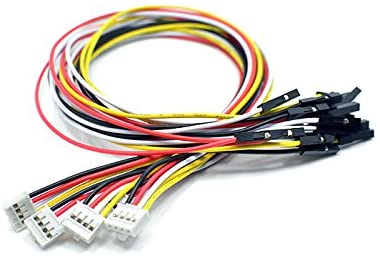

../_images/leak-detector-m5stickC_grove1.jpg
  • USB power supply with USB-C cable
    (the M5StickC comes with the short black USB cable seen in the pictures)

Probe Connection

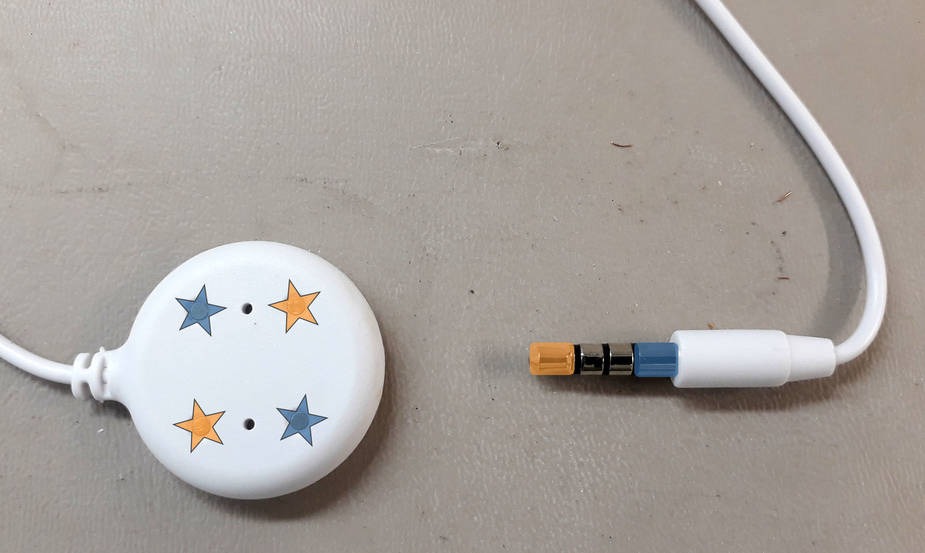

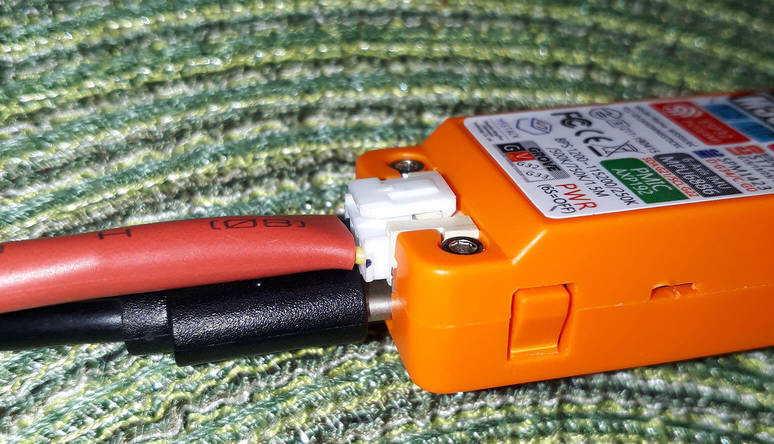

Since the probe comes with an integrated 3.5mm male plug, a 3.5mm female jack has been connected to the Grove port to allow easy probe replacement in the future. Orange connects to orange, blue connects to blue. The pads on the opposite side of the probe are internally-connected identically to the front. The two middle rings on the 3.5mm jack are unused. There is no polarity – simply connect one terminal (orange or blue) to Grove GND, and the other to Grove G33.

../_images/leak-detector-m5stickC_pinout.jpg
../_images/leak-detector-m5stickC_grove2.jpg

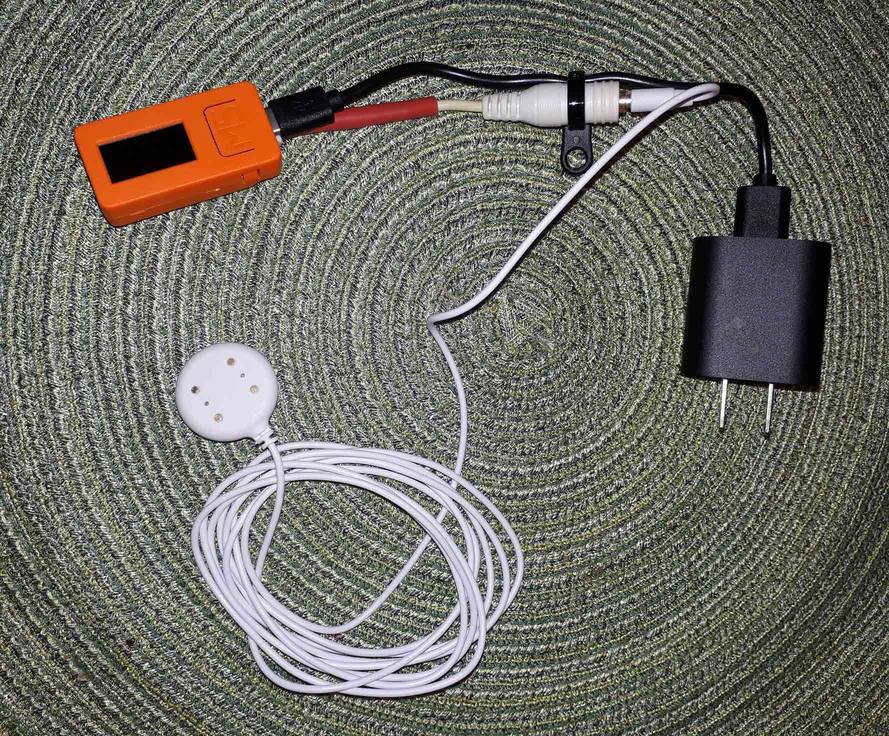

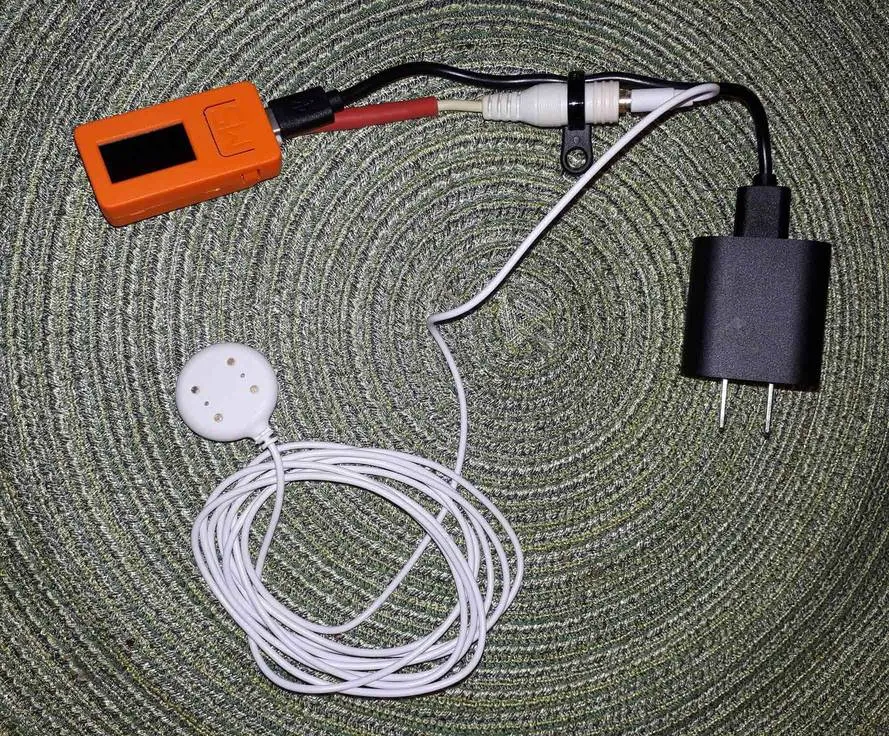

Assembled Components

../_images/leak-detector-m5stickC_overview2.jpg

Note

Even though the M5StickC has a battery inside (which might be enough to cover short power outages), you’ll need to keep the unit on USB power 24/7.

Display Font

You’ll need to place the OpenSans-Regular font (or another of your choosing) alongside your ESPhome yaml file. See - Display Component.

Flashing

I initially had trouble flashing the M5StickC; this is the procedure that I’ve found to work well with these devices.

You must provide the ESP32 bootloader during the initial flash over USB. Compile your ESPhome binary, and flash it along with the required bootloader (bootloader_dio_80m.bin), available here, from the commandline (example under macos):

cd /Applications/ESPHome-Flasher-1.2.0-macOS.app/Contents/MacOS

./ESPHome-Flasher ~/Desktop/basement_leak_detector.bin --bootloader ~/Desktop/bootloader_dio_80m.bin  --upload-baud-rate=115200

I also needed this procedure to flash M5Stack ATOM Lite and ATOM Matrix modules, which you also might consider using for this project. Both are smaller and more cost-effective than the M5stickC, and a generation newer – though they lack the TFT display.

../_images/leak-detector-m5stickC_atom_matrix.jpg
../_images/leak-detector-m5stickC_atom_lite.jpg

Calibration & Testing

Once everything is hooked up and flashed, enable esp32_touch: setup_mode: True and proceed to adjust the threshold setting on the touch-sensitive binary sensor (GPIO33) to find the proper value for your particular moisture sensor and cabling situation. Grab a glass of water for testing, another for yourself, and dip away while watching the logs. Your goal is to find a threshold value that is sufficient to trigger the binary sensor in water, but not otherwise. See ESP32 Touch Pad for more information.

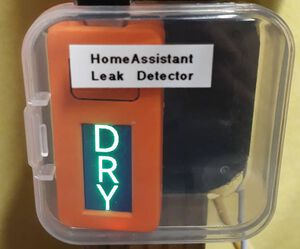

Normal state

../_images/leak-detector-m5stickC_dry.jpg

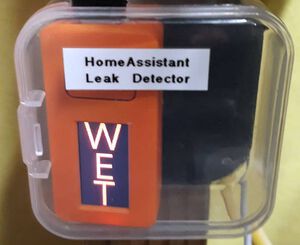

Wet state

../_images/leak-detector-m5stickC_wet.jpg

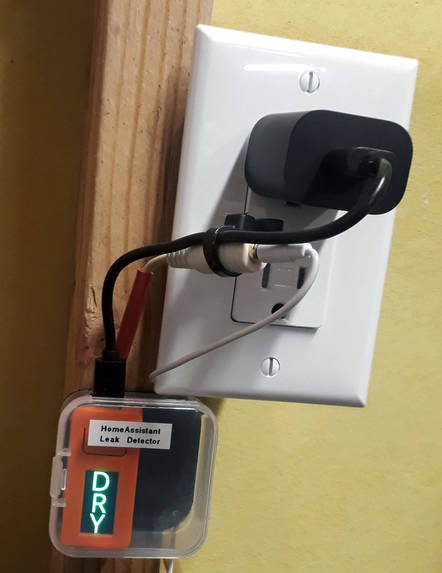

Installed Project

../_images/leak-detector-m5stickC_overview1.jpg

Not shown: Probe is placed on the floor in the corner, out of the way, in the lowest part of the room


ESPhome configuration

substitutions:
  devicename: basement_leak_detector
  friendly_name: Basement Leak Detector
  device_description: Leak detector in basement utility room

esphome:
  name: $devicename
  comment: ${device_description}
  platform: ESP32
  board: m5stick-c
  platformio_options:
    upload_speed: 115200

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  domain: .lan

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Basement Leak Det. Fallback AP"
    password: !secret fallback_ap_password

  manual_ip:
    static_ip: x.x.x.x
    gateway: x.x.x.x
    subnet: x.x.x.x

captive_portal:

logger:

# Enable Home Assistant API & OTA Updates
api:
  password: !secret api_password
ota:
  password: !secret ota_password

status_led:
  pin:
    number: GPIO10
    inverted: True

spi:
  clk_pin: GPIO13
  mosi_pin: GPIO15

i2c:
   - id: bus_a
     sda: GPIO21
     scl: GPIO22
     scan: True

esp32_touch:
  #setup_mode: True
  iir_filter: 10ms

binary_sensor:
  - platform: gpio
    pin:
      number: GPIO37
      inverted: true
    id: button_a
    on_press:
      then:
        - switch.toggle: led1
  - platform: gpio
    pin:
      number: GPIO39
      inverted: true
    id: button_b
    on_press:
      then:
        - switch.toggle: led1
  - platform: status
    name: "${friendly_name} Status"
  - platform: esp32_touch
    name: "${friendly_name} Sensor"
    device_class: moisture
    id: leak
    pin: GPIO33
    threshold: 30
    on_press:
      - while:
          condition:
            binary_sensor.is_on: leak
          then:
          - switch.turn_on: led1
          - delay: 200ms
          - switch.turn_off: led1
          - delay: 100ms
          - switch.turn_on: led1
          - delay: 200ms
          - switch.turn_off: led1
          - delay: 400ms
    on_release:
      then:
        - switch.turn_off: led1

sensor:
  - platform: uptime
    name: "${friendly_name} Uptime"

    # AXP192 power management - must be present to initialize TFT power on
  - platform: axp192
    address: 0x34
    i2c_id: bus_a
    update_interval: 30s
    battery_level:
      name: "${friendly_name} Battery Level"
      id: "m5stick_batterylevel"

  - platform: wifi_signal
    name: "${friendly_name} WiFi Signal"
    update_interval: 60s

text_sensor:
  - platform: version
    name: "${friendly_name} ESPHome version"

switch:
  - platform: gpio
    pin:
      number: GPIO10
      inverted: true
    id: led1

font:
  - file: 'OpenSans-Regular.ttf'
    id: font1
    size: 66

# built-in 80x160 TFT
display:
  - platform: st7735
    cs_pin: GPIO5
    dc_pin: GPIO23
    reset_pin: GPIO18
    rotation: 180
    lambda: |-
      if (id(leak).state) {
        it.print(38, -24, id(font1), ST77XX_RED, TextAlign::TOP_CENTER, "W");
        it.print(38, 32, id(font1), ST77XX_RED, TextAlign::TOP_CENTER, "E");
        it.print(38, 85, id(font1), ST77XX_RED, TextAlign::TOP_CENTER, "T");
      } else {
        it.print(38, -24, id(font1), ST77XX_GREEN, TextAlign::TOP_CENTER, "D");
        it.print(38, 32, id(font1), ST77XX_GREEN, TextAlign::TOP_CENTER, "R");
        it.print(38, 85, id(font1), ST77XX_GREEN, TextAlign::TOP_CENTER, "Y");
      }

HomeAssistant configuration

There are two sections: one for alert criteria, and another for notification via Pushover. See HomeAssistant’s Pushover integration docs for more details.

alert:
  basement_water_leak:
    name: Water detected in the basement
    entity_id: binary_sensor.basement_leak_detector_sensor
    state: 'on'
    repeat: 30
    can_acknowledge: true
    notifiers:
      - water_leak_notification_group

notify:
  - name: pushover
    platform: pushover
    api_key: !secret pushover_api_key
    user_key: !secret pushover_user_key
  - name: water_leak_notification_group
    platform: group
    services:
      - service: pushover
        data:
          data:
            # Pushover-provided sound effect (https://pushover.net/api#sounds)
            sound: alien

Enjoy your locally-controlled leak detector with push notification!
