Eastron SDM Energy Monitor

The sdm_meter sensor platform allows you to use Eastron SDM modbus energy monitors (website) with ESPHome.

../../_images/sdm220m-full.png

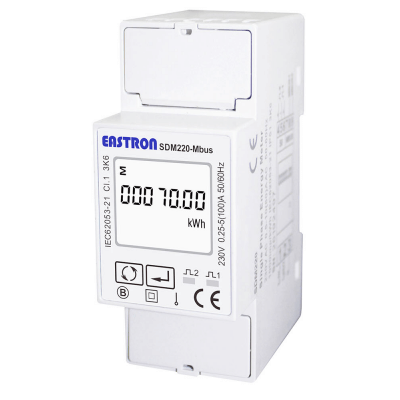

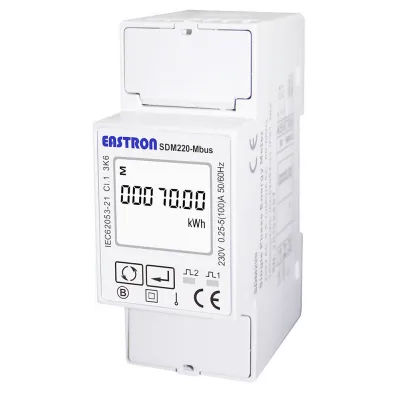

SDM220M Energy Monitor.

The communication with this integration is done over a UART bus using the Modbus protocol over RS485 wiring. You will need an RS485 to UART converter for communication. You must therefore have a uart: entry in your configuration with both the TX and RX pins set to some pins on your board and the baud rate set to 9600.

# Example configuration entry
uart:
  rx_pin: D1
  tx_pin: D2
  baud_rate: 9600
  stop_bits: 1

sensor:
  - platform: sdm_meter
    phase_a:
      current:
        name: "SDM220M Current"
      voltage:
        name: "SDM220M Voltage"
      active_power:
        name: "SDM220M Power"
      power_factor:
        name: "SDM220M Power Factor"
      apparent_power:
        name: "SDM220M Apparent Power"
      reactive_power:
        name: "SDM220M Reactive Power"
      phase_angle:
        name: "SDM220M Phase Angle"
    frequency:
      name: "SDM220M Frequency"
    total_power:
      name: "SDM220M Total Power"
    import_active_energy:
      name: "SDM220M Import Active Energy"
    export_active_energy:
      name: "SDM220M Export Active Energy"
    import_reactive_energy:
      name: "SDM220M Import Reactive Energy"
    export_reactive_energy:
      name: "SDM220M Export Reactive Energy"
    update_interval: 60s

Configuration variables:

  • phase_a (Optional): The group of exposed sensors for Phase A/1.

    • current (Optional): Use the current value of the sensor in amperes. All options from Sensor.

    • voltage (Optional): Use the voltage value of the sensor in volts (V). All options from Sensor.

    • active_power (Optional): Use the (active) power value of the sensor in watts (W). All options from Sensor.

    • power_factor (Optional): Use the power factor value of the sensor. All options from Sensor.

    • apparent_power (Optional): Use the apparent power value of the sensor in volt amps (VA). All options from Sensor.

    • reactive_power (Optional): Use the reactive power value of the sensor in volt amps reactive (VAR). All options from Sensor.

    • phase_angle (Optional): Use the phase angle value of the sensor in degrees (°). All options from Sensor.

  • phase_b (Optional): The group of exposed sensors for Phase B/2 on applicable meters. eg: SDM630

    • All options from phase_a

  • phase_c (Optional): The group of exposed sensors for Phase C/3 on applicable meters. eg: SDM630

    • All options from phase_a

  • frequency (Optional): Use the frequency value of the sensor in hertz. All options from Sensor.

  • total_power (Optional): Use the total power value of the sensor in watts (W). All options from Sensor.

  • import_active_energy (Optional): Use the import active energy value of the sensor in kilowatt hours (kWh). All options from Sensor.

  • export_active_energy (Optional): Use the export active energy value of the sensor in kilowatt hours (kWh). All options from Sensor.

  • import_reactive_energy (Optional): Use the import reactive energy value of the sensor in kilovolt amps reactive hours (kVArh). All options from Sensor.

  • export_reactive_energy (Optional): Use the export reactive energy value of the sensor in kilovolt amps reactive hours (kVArh). All options from Sensor.

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

  • address (Optional, int): The address of the sensor if multiple sensors are attached to the same UART bus. You will need to set the address of each device manually. Defaults to 1.
