DHT12 Temperature+Humidity Sensor

The dht12 Temperature+Humidity sensor allows you to use your DHT12 (datasheet, electrodragon) I²C-based sensor with ESPHome. This sensor is also called AM2320 by some sellers.

../../_images/dht12-full.jpg

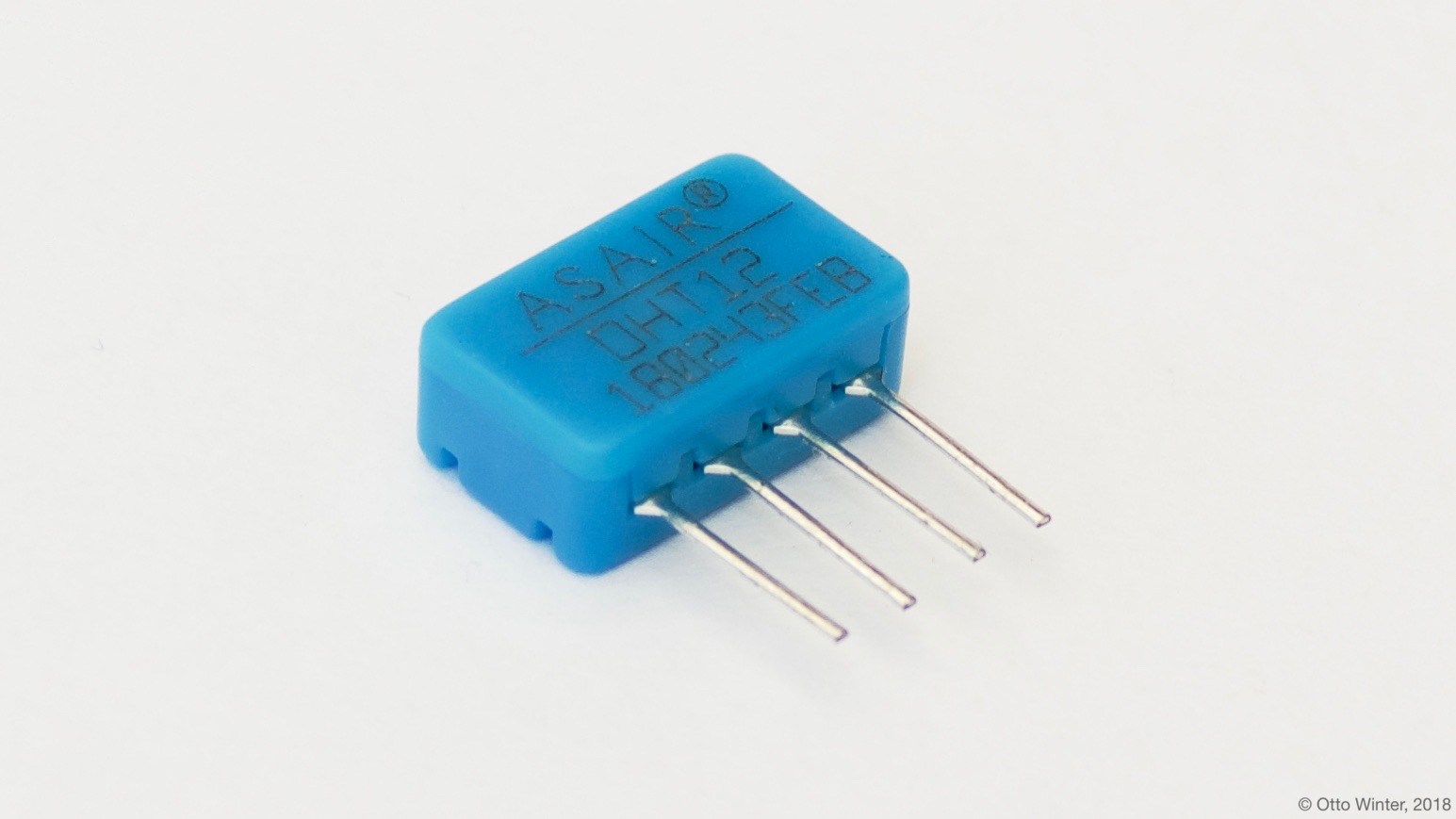

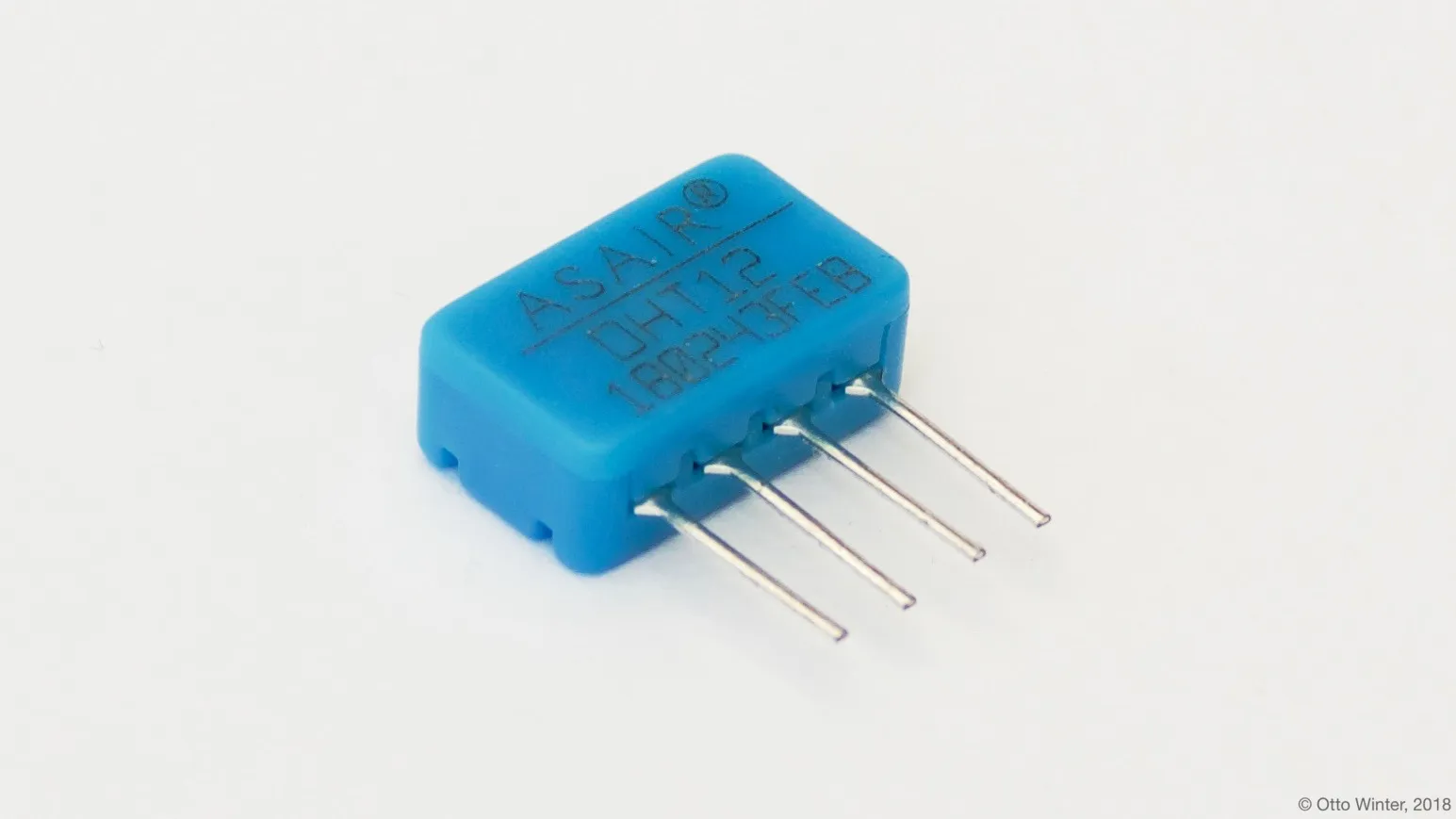

DHT12 Temperature & Humidity Sensor.

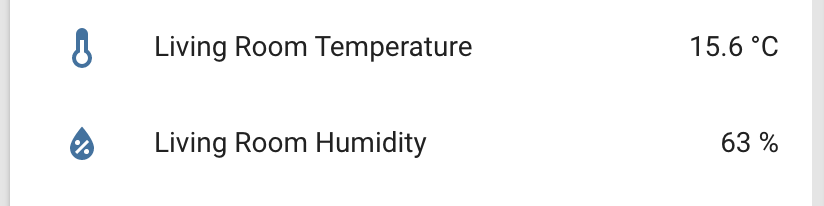

../../_images/temperature-humidity.png
# Example configuration entry
sensor:
  - platform: dht12
    temperature:
      name: "Living Room Temperature"
    humidity:
      name: "Living Room Humidity"
    update_interval: 60s

Configuration variables:

  • temperature (Required): The information for the temperature sensor.

    • name (Required, string): The name for the temperature sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • humidity (Required): The information for the humidity sensor

    • name (Required, string): The name for the humidity sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.
