Monochromatic Light

The monochromatic light platform creates a simple brightness-only light from an float output component.

../../_images/monochromatic-strip.jpg

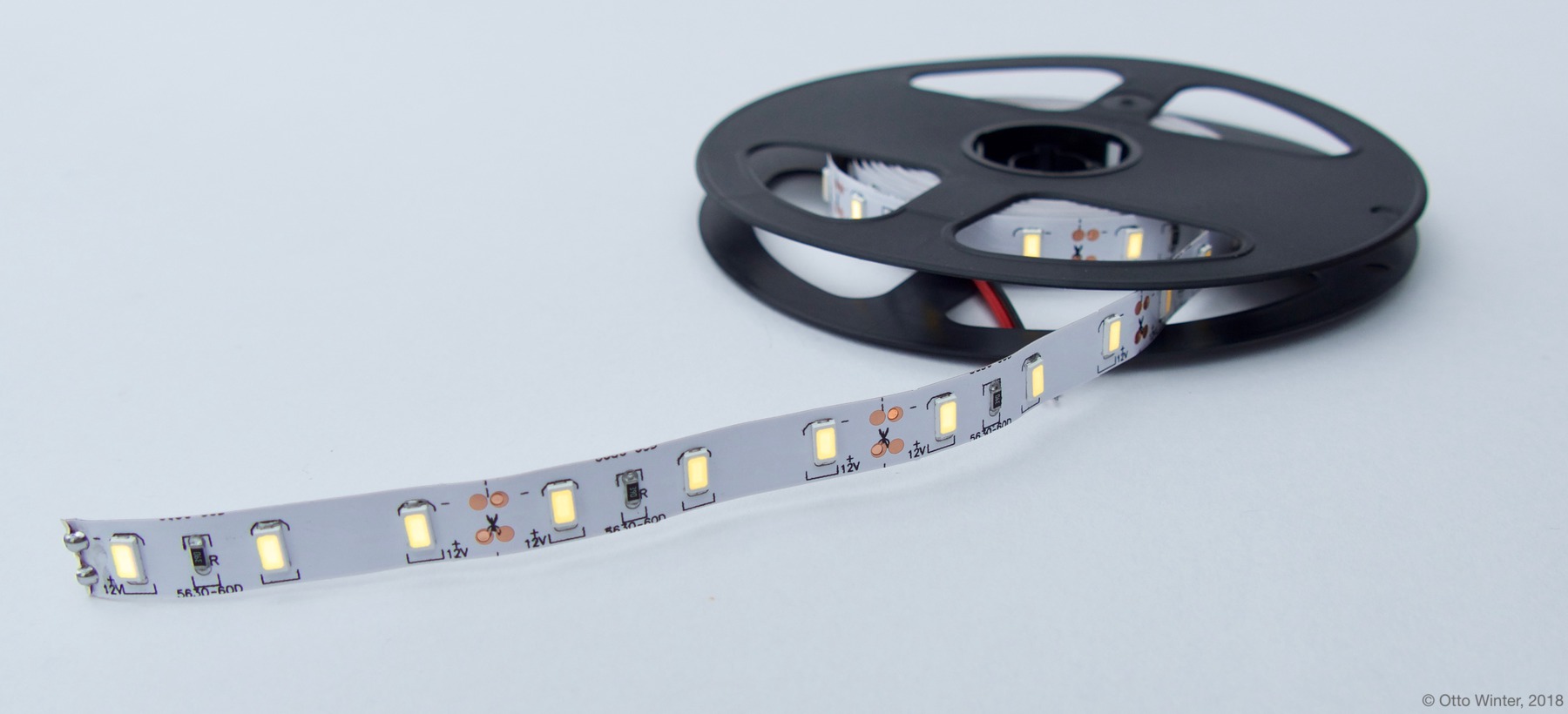

Example of a brightness-only LED strip that can be used with this component.

../../_images/kitchen-lights.png
# Example configuration entry
light:
  - platform: monochromatic
    name: "Kitchen Lights"
    output: output_component1

# Example output entry
output:
  - platform: esp8266_pwm
    id: output_component1
    pin: D1

Configuration variables:

  • name (Required, string): The name of the light.

  • output (Required, ID): The id of the float Output Component to use for this light.

  • effects (Optional, list): A list of light effects to use for this light.

  • id (Optional, ID): Manually specify the ID used for code generation.

  • All other options from Light.
