VBus Component

The VBus Component provides status reading connectivity to solar heat energy collector controllers using VBus protocol. These devices are mainly produced by Resol, often also found under different brand names like Viessmann, Kioto, Wagner etc. The component currently supports natively the models in the table below but any device can be added via lambda by knowing its packet structure.

Supported Models

The following table shows the currently supported models of Vbus devices.

Supported Models

Name	Config Value	Hex Address	Notes
DeltaSol BS Plus	deltasol_bs_plus	4221
DeltaSol BS 2009	deltasol_bs_2009	427B	DeltaSol BS Plus V2
Dux H3214	deltasol_bs_2009	427B	Pump 2 unsupported
DeltaSol C	deltasol_c	4212
DeltaSol CS2	deltasol_cs2	1121
DeltaSol CS2 Plus	deltasol_cs2_plus	2211

The Config Value should be used for the model parameter in your sensor and binary_sensor entries.

The Hex Address field is the value sent by a device in the from field of a message. To identify an unknown model, set the logger level to VERBOSE and look for lines like this in the log output:

[10:53:48][V][vbus:068]: P1 C0500 427b->0000: 0000 0000 (0)

The value before the -> symbol is the device source address. If it matches one of the entries in the table above then that model should work with your unit.

Hardware Connection

The device must be connected via a UART bus supporting the receiving line only. The UART bus must be configured at the same speed of the module which is by default 9600bps. The controller outputs data every second.

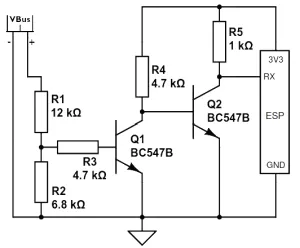

To connect to this and read data from the bus a level shifting is needed as the voltage is around 8V (direct connection would damage the MCU). For our read-only purposes it’s sufficient to adapt the level appropriately to 3.3V using a circuit like below:

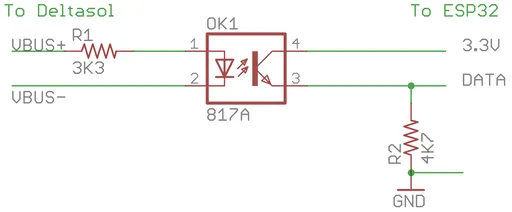

An electrically isolated version using an opto-coupler:

Another approach, with PCB design ready to be manufactured can be found here.

Warning

Do not connect the GND pin of your module with the ground of Resol unit as that may damage the output port of it. The output of the device is symmetric, meaning that the signal is not referenced to the ground, but rather it’s a differential signal between the two wires. However, the MCU references the signal against the ground, so the two grounds are not supposed to be connected to each other as can be seen in the circuit depicted above.

Component

# Example configuration entry
vbus:
  uart_id: resol

Warning

If you are using the Logger Component make sure you are not using the same pins for it or otherwise disable the UART logging with the baud_rate: 0 option.

Configuration variables:

• uart_id (Optional, ID): Manually specify the ID of the UART hub used to connect to the device.

Note

Functionality of the sensors depends on the type of the device and the scheme arrangement of the hydraulic system it controls. The actual arrangement number set up can be determined from the settings of the device. Please check the user manual and assess your arrangement to determine the functionality of each sensor and name them accordingly.

Sensor

# Example configuration entry
sensor:
  - platform: vbus
    model: deltasol_bs_plus
    temperature_1:
      name: Temperature 1
    temperature_2:
      name: Temperature 2
    temperature_3:
      name: Temperature 3
    temperature_4:
      name: Temperature 4
    pump_speed_1:
      name: Pump Speed 1
    pump_speed_2:
      name: Pump Speed 2
    operating_hours_1:
      name: Operating Hours 1
    operating_hours_2:
      name: Operating Hours 2
    heat_quantity:
      name: Heat Quantity
    time:
      name: Device Time
    version:
      name: Device firmware version

Configuration variables:

• model (Required): Specify the model of the connected controller. Choose one of the config values listed in the table of supported models above.

Supported sensors:

• for deltasol_bs_plus and deltasol_bs_2009: temperature_1, temperature_2, temperature_3, temperature_4, pump_speed_1, pump_speed_2, operating_hours_1, operating_hours_2, heat_quantity, time, version.

• for deltasol_c: temperature_1, temperature_2, temperature_3, temperature_4, pump_speed_1, pump_speed_2, operating_hours_1, operating_hours_2, heat_quantity, time.

• for deltasol_cs2: temperature_1, temperature_2, temperature_3, temperature_4, pump_speed, operating_hours, heat_quantity, version.

• for deltasol_cs_plus: temperature_1, temperature_2, temperature_3, temperature_4, temperature_5, pump_speed_1, pump_speed_2, operating_hours_1, operating_hours_2, heat_quantity, time, version, flow_rate.

All sensors are Optional and support all other options from Sensor.

Note

Sensors are updated every time a data packet is sent by the device. Some models send data very often, possibly every second. If you are concerned about the load on the receiving database, you can add a throttle filter to the sensors.

Binary Sensor

# Example configuration entry
binary_sensor:
  - platform: vbus
    model: deltasol_bs_plus
    relay1:
      name: Relay 1 On
    relay2:
      name: Relay 2 On
    sensor1_error:
      name: Sensor 1 Fault
    sensor2_error:
      name: Sensor 2 Fault
    sensor3_error:
      name: Sensor 3 Fault
    sensor4_error:
      name: Sensor 4 Fault
    collector_max:
      name: Option Collector Max
    collector_min:
      name: Option Collector Min
    collector_frost:
      name: Option Collector Frost
    tube_collector:
      name: Option Tube Collector
    recooling:
      name: Option Recooling
    hqm:
      name: Option Heat Quantity Measurement

Configuration variables:

• model (Required): Specify the model of the connected controller. Choose one of the config values listed in the table of supported models above.

  Supported models:

  • ``deltasol_bs_plus``: relay1, relay2, sensor1_error, sensor2_error, sensor3_error, sensor4_error, collector_max, collector_min, collector_frost, tube_collector, recooling, hqm.

  • ``deltasol_bs_2009``: sensor1_error, sensor2_error, sensor3_error, sensor4_error, frost_protection_active.

  • ``deltasol_c``: sensor1_error, sensor2_error, sensor3_error, sensor4_error.

  • ``deltasol_cs2``: sensor1_error, sensor2_error, sensor3_error, sensor4_error.

  • ``deltasol_cs_plus``: sensor1_error, sensor2_error, sensor3_error, sensor4_error.

  • ``custom``: See below.

All binary sensors are Optional and support all other options from Binary Sensor.

custom VBus sensors

Devices on a VBus are identified with a source address. There can be multiple devices on the same bus, each device type has a different address.

sensor:
  - platform: vbus
    model: custom
    dest: 0x10
    source: 0x1234
    command: 0x100
    sensors:
      - id: temp1
        name: Temp 1
        lambda: return ((x[1] << 8) + x[0]) / 10.0;

Configuration variables:

• dest (Required): The DFA value corresponding to your device (see below).

• source (Required): The address corresponding to your device model (see below).

• command (Required): The command corresponding to your device (see below).

• sensors (Required): A list of Sensor definitions that include a lambda to do the decoding and return a float value.

• lambda (Required, lambda): Code to parse a value from the incoming data packets and return it. The data packet is in a std::vector<uint8_t> called x.

custom VBus binary sensors

Configuration variables:

• dest (Required): The DFA value corresponding to your device (see below).

• source (Required): The address corresponding to your device model (see below).

• command (Required): The command corresponding to your device (see below).

• binary_sensors (Required): A list of Binary Sensor definitions that include a lambda to do the decoding and return a bool value.

• lambda (Required, lambda): Code to parse a value from the incoming data packets and return it. The data packet is in a std::vector<uint8_t> called x.

To determine the correct values for the parameters above, visit packet definitions list. In the search field of the Packets table, enter the name of your device.

To extract the values with a lambda, look in the packet structure by clicking the Bytes link in the table. Each value is placed at an offset within the packet. For float values, let’s look at the temperature example: the value is stored as a 16-bit value in 2 bytes little-endian format. Since it’s always the second byte containing the upper byte, it needs to be shifted by 8 bits (multiplied by 256) (e.g. 0x34, 0x12 -> 0x1234). The result needs to be multiplied by the factor, which is 0.1, to obtain the correct values: ((x[1] << 8) + x[0]) * 0.1f). The number within the square brackets is the [offset]. For binary values, multiple binary values are stored within a single numeric value encoded with a bitmask. To extract the binary value all you have to do is to apply bitwise AND operator & between the value at the corresponding offset and the mask shown in the table.

For example to decode some sensors of DeltaSol BS Plus via lambdas:

# Example configuration entry
sensor:
  - platform: vbus
    model: custom
    dest: 0x10
    source: 0x4221
    command: 0x100
    sensors:
      - id: scheme
        name: Arrangement scheme
        icon: mdi:pipe-wrench
        accuracy_decimals: 0
        entity_category: diagnostic
        lambda: return x[14];  // Configured arrangement scheme
      - id: temp2
        name: Temperature DHW
        state_class: measurement
        unit_of_measurement: "°C"
        lambda: return ((x[3] << 8) + x[2]) * 0.1f;  // Temperature 2

binary_sensor:
  - platform: vbus
    model: custom
    dest: 0x10
    source: 0x4221
    command: 0x100
    binary_sensors:
      - name: Heat Quantity Measurement On
        id: bin_hqm
        icon: mdi:counter
        lambda: return x[15] & 0x20; // Option Heat Quantity Measurement enabled

See Also

• UART Bus

• Binary Sensor Component

• Sensor Component

• Resol manuals

• VBus protocol
