Teleinformation from Linky electrical counter.

The teleinfo component allows you to retrieve data from a French electrical counter using Teleinformation (datasheet). It works with Linky electrical counter but also legacy EDF electrical counter.

../../_images/teleinfo-full.jpg

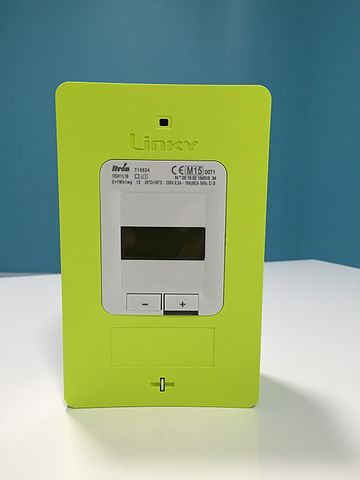

Linky electrical counter

A simple electronic assembly with an optocoupler and a resistor could let you retrieve detailed power consumption or power production. There is plenty of example on the web.

As the communication with the Teleinformation is done using UART, you need to have an UART bus in your configuration with the rx_pin connected to the output of the optocoupler component. Additionally, you need to set the baud rate to 9600bps if counter is configured to work in standard mode or 1200bps in historical mode. To find out which mode you are using, simply press -/+ buttons on the counter and look for Standard mode or Historical mode as below.

../../_images/teleinfo-standard.jpg

Linky electrical counter configured in standard mode.

../../_images/teleinfo-historical.jpg

Linky electrical counter configured in historical mode.

# Example configuration entry
uart:
  id: uart_bus
  rx_pin: GPIO3
  tx_pin: GPIO1
  baud_rate: 1200
  parity: EVEN
  data_bits: 7

sensor:
  - platform: teleinfo
    tags:
     - name: "HCHC"
       sensor:
        name: "hchc"
        unit_of_measurement: "Wh"
        icon: mdi:flash
     - name: "HCHP"
       sensor:
        name: "hchp"
        unit_of_measurement: "Wh"
        icon: mdi:flash
     - name: "PAPP"
       sensor:
        name: "papp"
        unit_of_measurement: "VA"
        icon: mdi:flash
    update_interval: 60s
    historical_mode: true

Configuration variables:

  • tags (Required): Specify the tag you want to retrieve from the Teleinformation and select with what name to transmit it.

    • name (Required, string): The name of the tag corresponding to what the electrical counter send.

    • sensor (Required, Sensor): Associate a sensor with the tag. See options from Sensor.

  • historical_mode (Optional): Wether to use historical mode or standard mode. With historical mode, baudrate of 1200 must be used whereas 9600 must be used in standard mode. Defaults to False.

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

  • uart_id (Optional, ID): Manually specify the ID of the UART Component if you want to use multiple UART buses.
