SGP30 CO₂ and Volatile Organic Compound Sensor

The sgp30 sensor platform allows you to use your Sensirion SGP30 multi-pixel gas (datasheet) sensors or the SVM30 breakout-boards (product page) with ESPHome. The I²C Bus is required to be set up in your configuration for this sensor to work.

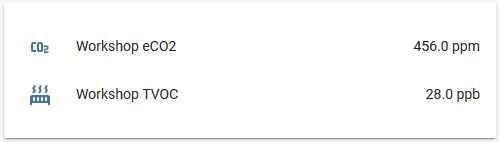

../../_images/eco2-tvoc.png
# Example configuration entry
sensor:
  - platform: sgp30
    eco2:
      name: "Workshop eCO2"
      accuracy_decimals: 1
    tvoc:
      name: "Workshop TVOC"
      accuracy_decimals: 1
    store_baseline: yes
    address: 0x58
    update_interval: 1s

Configuration variables:

  • eco2 (Required): The information for the CO₂eq. sensor.

    • name (Required, string): The name for the CO₂eq sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • tvoc (Required): The information for the total Volatile Organic Compounds sensor.

    • name (Required, string): The name for the humidity sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • store_baseline (Optional, boolean): Store the sensor baselines persistently when calculated or updated. Defaults to yes.

  • address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x58.

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 1s.

Advanced:

  • baseline (Optional): The block containing baselines for calibration purposes. See Calibrating Baseline for more info.

    • eco2_baseline (Required, int): The eCO2 baseline for calibration purposes. After OTA, this value is used to calibrate the sensor.

    • tvoc_baseline (Required, int): The TVOC baseline for calibration purposes. After OTA, this value is used to calibrate the sensor.

  • eco2_baseline (Optional): The information for the CO₂eq. sensor baseline value. Baseline value is published in decimals.

    • name (Required, string): The name for the CO₂eq baseline value sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • tvoc_baseline (Optional): The information for the TVOC baseline value sensor. Baseline value is published in in decimals.

    • name (Required, string): The name for the TVOC baseline value sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • compensation (Optional): The block containing sensors used for compensation.

    • temperature_source (Optional, ID): Give an external temperature sensor ID here. This can improve the sensor’s internal calculations.

    • humidity_source (Optional, ID): Give an external humidity sensor ID here. This can improve the sensor’s internal calculations.

Calibrating Baseline

The SGP30 sensor will re-calibrate its baseline each time it is powered on. During the first power-up this will take up to 12 hours. Exposing to outside air for at least 10 minutes cumulative time is advised during the calibration period.

For best performance and faster startup times, the current baseline needs to be persistently stored on the device before shutting it down and set again accordingly after boot up. It implies that if the sensor reboots at a time when the air is less clean than normal, the values will have a constant offset and cannot be compared to the values before the last boot.

Using the store_baseline option will automatically store the baseline values after calibration or when it is updated during operation. When booting up, the stored values will then be (re)applied in the sensor. Stored baselines are cleared after OTA.

Another method is to manually specify the baseline values in the configuration file. To do this, let the sensor boot up with no baseline set and let the sensor calibrate itself. After around 12 hours you can then view the remote logs on the ESP. The nexttime the sensor is read out, you will see a log message with something like Current eCO2 baseline: 0x86C5, TVOC baseline: 0x8B38.

Another way to obtain the baseline values is to configure the eco2 and TVOC baseline value sensors. Values will be published to your Home Automation system. Convert the decimal value to hex value before use (e.g. 37577 –> 0x92C9)

Now set the baseline property in your configuration file like so with the value you got via the logs:

# Example configuration entry
sensor:
  - platform: sgp30
    # ...
    baseline:
      eco2_baseline: 0x86C5
      tvoc_baseline: 0x8B38

The next time you upload the code, the SGP30 will be continue its operation with this baseline and you will get consistent values.

Please note while the sensor is off, baseline values are valid for a maximum of seven days.
