VL53L0X Time Of Flight Distance Sensor

The vl53l0x sensor platform allows you to use VL53L0X optical time of flight (datasheet, ST) with ESPHome to measure distances. The sensor works optically by emitting short infrared pulses and measuring the time it takes the light to be reflected back

The sensor can measure distances up to 2 meters, though that figure depends significantly on several conditions like surface reflectance, field of view, temperature etc. In general you can expect surfaces up to 60cm to work, after that you need to make sure the surface is reflecting well enough (see also section 5 of datasheet).

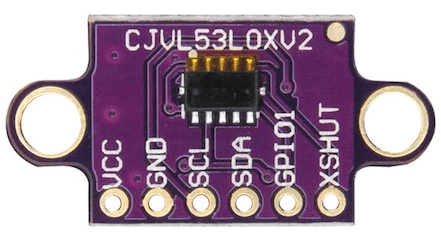

../../_images/vl53l0x.png

The I²C Bus is required to be set up in your configuration for this sensor to work.

  • VCC connects to 3V3 (3V3 will output 3.3V), or directly connect VCC to 3.3V

  • GND connects to ground

  • SCL connects I2C SCL (clock)

  • SDA connects I2C SDA (data)

  • GPIO1 is not used by ESPHome

  • XSHUT connects to free GPIO pin. Enable/disable device. This is optional if there is only one VL53L0X sensor on the I²C bus and the default 0x29 address is used. Otherwise this is required.

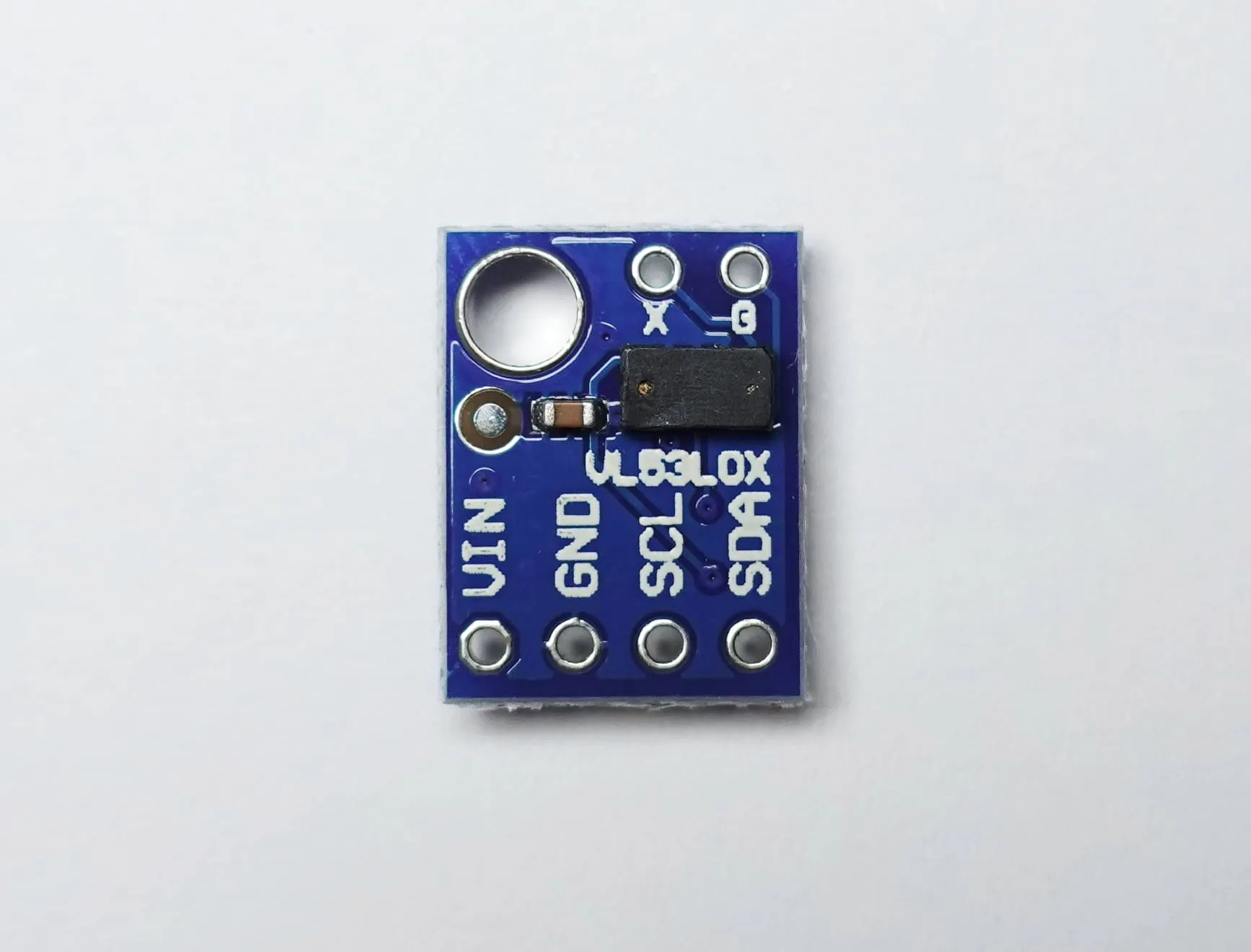

../../_images/vl53l0x-full.jpg

VL53L0X Time Of Flight Distance Sensor.

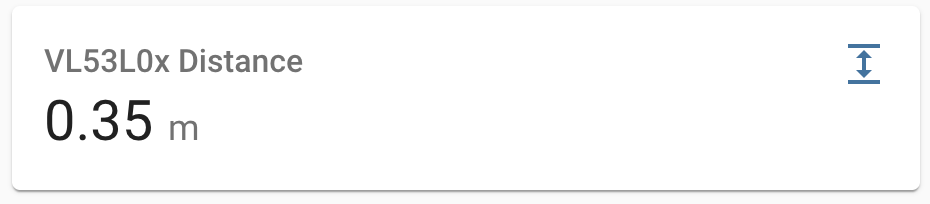

../../_images/vl53l0x-ui.png
# Simple configuration entry example
sensor:
  - platform: vl53l0x
    name: "VL53L0x Distance"
    address: 0x29
    update_interval: 60s
    long_range: true

Configuration variables:

  • name (Required, string): The name of the sensor.

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

  • signal_rate_limit (Optional, float): Set the return signal rate limit in units of MCPS (mega counts per second). This is the minimum signal amplitude detected by the sensor necessary for it to report a valid reading. Setting a lower value may increase the range of the sensor but also increases the chance of getting inaccurate readings. Defaults to 0.25.

  • long_range (Optional, boolean): Set the sensor in long range mode. The signal_rate_limit is overruled to 0.1. Defaults to false.

  • address (Optional, int): Manually specify the i2c address of the sensor. Defaults to 0x29. If an address other the 0x29 is specified, the sensor will be dynamically re-addressed at startup. A dynamic re-address of sensor requires the enable_pin configuration variable to be assigned. If more then one VL53L0X sensor is used on the same i2c bus, a unique address must be specified per sensor.

  • enable_pin (Optional, Pin Schema): The pin connected to XSHUT on vl53l0x to enable/disable sensor. Required if not using address 0x29 which is the cause if you have multiple VL53L0X on the same i2c bus. In this case you have to assign a different pin to each VL53L0X.

  • timeout (Optional, Time): Sensor setup timeout. Default to 10ms.

  • id (Optional, ID): Manually specify the ID used for code generation.

  • All other options from Sensor.

# Muliple VL53L0X sensors on same i2c bus
# Example configuration entry
sensor:
  - platform: vl53l0x
    name: "distance1"
    id: distance1
    address: 0x41
    enable_pin: GPIO16
    timeout: 200us
    update_interval: 500ms
    unit_of_measurement: "m"

  - platform: vl53l0x
    name: "distance2"
    id: distance2
    address: 0x42
    enable_pin: GPIO17
    timeout: 200us
    update_interval: 500ms
    unit_of_measurement: "m"
