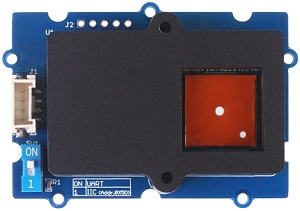

SFA30 Formaldehyde Sensor¶
sfa30 sensor platform allows you to use your Sensirion SFA30 Formaldehyde
(datasheet) sensors with ESPHome.
The I²C Bus is required to be set up in your configuration for this sensor to work.
This sensor supports both UART and I²C communication. However, at the moment only I²C communication is implemented.
# Example configuration entry sensor: - platform: sfa30 formaldehyde: name: "Formaldehyde" temperature: name: "Temperature" humidity: name: "Humidity"
formaldehyde (Optional): The information for the Formaldehyde sensor. All options from Sensor.
temperature (Optional): The information for the Temperature sensor. All options from Sensor.
humidity (Optional): The information for the Humidity sensor. All options from Sensor.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
update_interval (Optional, Time): The interval to check the sensor. Defaults to
