MQTT Client Component

The MQTT Client Component sets up the MQTT connection to your broker. If you are connecting to Home Assistant, you may prefer to use the native API, in which case this is not needed.

Warning

If you enable MQTT and you do not use the “native API” for Home Assistant, you must remove the api: line from your ESPHome configuration, otherwise the ESP will reboot every 15 minutes because no client connected to the native API.

# Example configuration entry
mqtt:
  broker: 10.0.0.2
  username: livingroom
  password: !secret mqtt_password

Note

Support for esp-idf is still experminental. Please report issues you have with mqtt using the esp-idf framework.

Configuration variables:

  • broker (Required, string): The host of your MQTT broker.

  • port (Optional, int): The port to connect to. Defaults to 1883.

  • username (Optional, string): The username to use for authentication. Empty (the default) means no authentication.

  • password (Optional, string): The password to use for authentication. Empty (the default) means no authentication.

  • clean_session (Optional, boolean): Whether the broker will clean the MQTT session after disconnect. Defaults to false.

  • client_id (Optional, string): The client id to use for opening connections. See Defaults for more information.

  • discover_ip (Optional, boolean): If Home Assistant automatic device discovery should be enabled. Defaults to true.

  • discovery (Optional, boolean): If Home Assistant automatic entity discovery should be enabled. Defaults to true.

  • discovery_retain (Optional, boolean): Whether to retain MQTT discovery messages so that entities are added automatically on Home Assistant restart. Defaults to true.

  • discovery_prefix (Optional, string): The prefix to use for Home Assistant’s MQTT discovery. Should not contain trailing slash. Defaults to homeassistant.

  • discovery_unique_id_generator (Optional, string): The unique_id generator to use. Can be one of legacy or mac. Defaults to legacy, which generates unique_id in format ESP<component_type><default_object_id>. mac generator uses format <mac_address>-<component_type>-<fnv1_hash(friendly_name)>.

  • discovery_object_id_generator (Optional, string): The object_id generator to use. Can be one of none or device_name. Defaults to none which does not generate object_id. device_name generator uses format <device_name>_<friendly_name>.

  • use_abbreviations (Optional, boolean): Whether to use Abbreviations in discovery messages. Defaults to true.

  • topic_prefix (Optional, string): The prefix used for all MQTT messages. Should not contain trailing slash. Defaults to <APP_NAME>. Use null to disable publishing or subscribing of any MQTT topic unless it is explicitly configured.

  • log_topic (Optional, MQTTMessage): The topic to send MQTT log messages to. Use null if you want to disable sending logs to MQTT.

    The log_topic has an additional configuration option:

    • level (Optional, string): The log level to use for MQTT logs. See Log Levels for options.

  • birth_message (Optional, MQTTMessage): The message to send when a connection to the broker is established. See Last Will And Birth Messages for more information.

  • will_message (Optional, MQTTMessage): The message to send when the MQTT connection is dropped. See Last Will And Birth Messages for more information.

  • shutdown_message (Optional, MQTTMessage): The message to send when the node shuts down and the connection is closed cleanly. See Last Will And Birth Messages for more information.

  • ssl_fingerprints (Optional, list): Only on ESP8266. A list of SHA1 hashes used for verifying SSL connections. See SSL Fingerprints. for more information.

  • certificate_authority (Optional, string): Only with esp-idf. CA certificate in PEM format. See TLS with esp-idf (esp32) for more information

  • client_certificate (Optional, string): Only on esp32. Client certificate in PEM format.

  • client_certificate_key (Optional, string): Only on esp32. Client private key in PEM format.

  • skip_cert_cn_check (Optional, bool): Only with esp-idf. Don’t verify if the common name in the server certificate matches the value of broker.

  • idf_send_async (Optional, bool): Only with esp-idf. If true publishing the message happens from the internal mqtt task. The client only enqueues the message. Defaults to false. The advantage of asyncronous publishing is that it doesn’t block the esphome main thread. The disadvantage is a delay (up to 1-2 seconds) until the messages are actually sent out. Set this to true if you send large amounts of of data over mqtt.

  • reboot_timeout (Optional, Time): The amount of time to wait before rebooting when no MQTT connection exists. Can be disabled by setting this to 0s. Defaults to 15min.

  • keepalive (Optional, Time): The time to keep the MQTT socket alive, decreasing this can help with overall stability due to more WiFi traffic with more pings. Defaults to 15 seconds.

  • on_connect (Optional, Automation): An action to be performed when a connection to the broker is established.

  • on_disconnect (Optional, Automation): An action to be performed when the connection to the broker is dropped.

  • on_message (Optional, Automation): An action to be performed when a message on a specific MQTT topic is received. See on_message Trigger.

  • on_json_message (Optional, Automation): An action to be performed when a JSON message on a specific MQTT topic is received. See on_json_message Trigger.

  • id (Optional, ID): Manually specify the ID used for code generation.

MQTTMessage

With the MQTT Message schema you can tell ESPHome how a specific MQTT message should be sent. It is used in several places like last will and birth messages or MQTT log options.

# Simple:
some_option: topic/to/send/to

# Disable:
some_option:

# Advanced:
some_option:
  topic: topic/to/send/to
  payload: online
  qos: 0
  retain: true

Configuration options:

  • topic (Required, string): The MQTT topic to publish the message.

  • payload (Required, string): The message content. Will be filled by the actual payload with some options, like log_topic.

  • qos (Optional, int): The Quality of Service level of the topic. Defaults to 0.

  • retain (Optional, boolean): If the published message should have a retain flag on or not. Defaults to true.

MQTT device discovery

The ESPHome device will respond to the following MQTT topics if mqtt.discover_ip is enabled.

  • esphome/discover (All ESPHome device will answer)

  • esphome/ping/<APP_NAME>

The response will be sent to esphome/discover/<APP_NAME> and is a JSON encoded message.

The MQTT device discovery is currently used for:

  • ESPHome dashboard (online / offline status)

  • ESPHome CLI (IP discovery; used to view logs and perform OTA uploads)

  • Home Assistant device discovery

Example Payload:

{
  "ip": "192.168.0.122",
  "name": "esp32-test",
  "friendly_name": "Test Device",
  "port": 6053,
  "version": "2024.4.1",
  "mac": "84fce6123456",
  "platform": "ESP32",
  "board": "esp32-c3-devkitm-1",
  "network": "wifi",
  "api_encryption": "Noise_NNpsk0_25519_ChaChaPoly_SHA256"
}

JSON keys:

  • ip (Required, ip): The IP address of the ESPHome device.

  • name (Required, string): Name of the device (esphome.name).

  • mac (Required, string): MAC address of the device.

  • board (Required, string): Board used for the device.

  • version (Required, string): ESPHome version.

  • port (Optional, port): Port of the ESPHome API (if enabled).

  • ipX (Optional, ip): Additional IP addresses (X is a number starting at 1).

  • friendly_name (Optional, string): Friendly name of the device (esphome.friendly_name).

  • platform (Optional, string): Platform of the device (e.g. ESP32 or ESP8266)

  • network (Optional, string): Network type.

  • project_name (Optional, string): esphome.project.name.

  • project_version (Optional, string): esphome.project.version.

  • project_version (Optional, string): dashboard_import.package_import_url.

  • api_encryption (Optional, string): API encryption type.

Using device discovery with Home Assistant

MQTT can be used to automatically discover the ESPHome devices in Home Assistant. This allows Home Assistant to find the ESPHome device and connect to it via the ESPHome API which allows the usage of more features then MQTT entity discovery alone (e.g. Bluetooth Proxy, Voice Assistant).

This can be achieved by enabling api and mqtt with mqtt.discover_ip enabled. It may makes sense to disable mqtt.discovery since there will be no need to use the MQTT entity discovery if Home Assistant will connect to the ESPHome API.

Example configuration:

api:
  encryption:
    key: "<secret>"

mqtt:
  broker: 10.0.0.2
  username: livingroom
  password: !secret mqtt_password
  discovery: False # disable entity discovery
  discover_ip: True # enable device discovery

Using with Home Assistant MQTT entities

Using ESPHome with Home Assistant is easy, simply setup an MQTT broker (like mosquitto) and point both your Home Assistant installation and ESPHome to that broker. Next, enable discovery in your Home Assistant configuration with the following:

# Example Home Assistant configuration.yaml entry
mqtt:
  broker: ...

And that should already be it 🎉 All devices defined through ESPHome should show up automatically in the entities section of Home Assistant.

When adding new entities, you might run into trouble with old entities still appearing in Home Assistant’s front-end. This is because in order to have Home Assistant “discover” your devices on restart, all discovery MQTT messages need to be retained. Therefore the old entities will also re-appear on every Home Assistant restart even though they’re in ESPHome anymore.

To fix this, ESPHome has a simple helper script that purges stale retained messages for you:

esphome clean-mqtt configuration.yaml

With Docker:

docker run --rm -v "${PWD}":/config -it ghcr.io/esphome/esphome clean-mqtt configuration.yaml

This will remove all retained messages with the topic <DISCOVERY_PREFIX>/+/NODE_NAME/#. If you want to purge on another topic, simply add --topic <your_topic> to the command.

Home Assistant generates entity names for all discovered devices based on entity type and entity name (e.g. sensor.uptime). Numeric suffixes are appended to entity names when multiple devices use the same name for a sensor, making it harder to distinguish between similar sensors on different devices. Home Assistant 2021.12 allows MQTT devices to change this behaviour by specifying the object_id discovery attribute which replaces the sensor name part of the generated entity name. Setting discovery_object_id_generator: device_name in the ESPHome MQTT component configuration will cause Home Assistant to include device name in the generated entity names (e.g. sensor.uptime becomes sensor.<device name>_uptime), making it easier to distinguish the entities in various entity lists.

Defaults

By default, ESPHome will prefix all messages with your node name or topic_prefix if you have specified it manually. The client id will automatically be generated by using your node name and adding the MAC address of your device to it. Next, discovery is enabled by default with Home Assistant’s default prefix homeassistant.

If you want to prefix all MQTT messages with a different prefix, like home/living_room, you can specify a custom topic_prefix in the configuration. That way, you can use your existing wildcards like home/+/# together with ESPHome. All other features of ESPHome (like availability) should still work correctly.

Last Will And Birth Messages

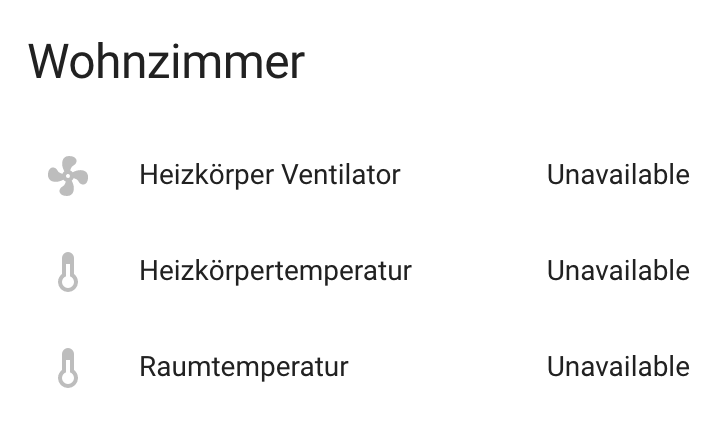

ESPHome uses the last will testament and birth message feature of MQTT to achieve availability reporting for Home Assistant. If the node is not connected to MQTT, Home Assistant will show all its entities as unavailable (a feature 😉).

../_images/mqtt-availability.png

By default, ESPHome will send a retained MQTT message to <TOPIC_PREFIX>/status with payload online, and will tell the broker to send a message <TOPIC_PREFIX>/status with payload offline if the connection drops.

You can change these messages by overriding the birth_message and will_message with the following options.

mqtt:
  # ...
  birth_message:
    topic: myavailability/topic
    payload: online
  will_message:
    topic: myavailability/topic
    payload: offline

If the birth message and last will message have empty topics or topics that are different from each other, availability reporting will be disabled.

SSL Fingerprints

On the ESP8266 you have the option to use SSL connections for MQTT. This feature will get expanded to the ESP32 once the base library, AsyncTCP, supports it. Please note that the SSL feature only checks the SHA1 hash of the SSL certificate to verify the integrity of the connection, so every time the certificate changes, you’ll have to update the fingerprints variable. Additionally, SHA1 is known to be partially insecure and with some computing power the fingerprint can be faked.

To get this fingerprint, first put the broker and port options in the configuration and then run the mqtt-fingerprint script of ESPHome to get the certificate:

esphome mqtt-fingerprint livingroom.yaml
> SHA1 Fingerprint: a502ff13999f8b398ef1834f1123650b3236fc07
> Copy above string into mqtt.ssl_fingerprints section of livingroom.yaml
mqtt:
  # ...
  ssl_fingerprints:
    - a502ff13999f8b398ef1834f1123650b3236fc07

TLS with esp-idf (esp32)

If used with the esp-idf framework a TLS connection to a mqtt broker can be established. The servers CA certificate is required to validate the connection.

You have to download the server CA certficiate in PEM format and add it to certificate_authority. Usually these are .crt files and you can open them with any text editor. Also make sure to change the port of the mqtt broker. Most brokers use port 8883 for TLS connections.

Warning

MbedTLS, the library that handles TLS for the esp-idf, doesn’t validate wildcard certificates.

The Common Name check only works if the CN is explicitly reported in the certificate.

  • *.example.com -> Fail

  • mqtt.example.com -> Success

If a secure connection is necessary for your device, you really want to set:

skip_cert_cn_check: false
mqtt:
  broker: test.mymqtt.local
  port: 8883
  discovery_prefix: ${mqtt_prefix}/homeassistant
  log_topic: ${mqtt_prefix}/logs
  # Evaluate carefully skip_cert_cn_check
  skip_cert_cn_check: true
  idf_send_async: false
  certificate_authority: |
    -----BEGIN CERTIFICATE-----
    MIIEAzCCAuugAwIBAgIUBY1hlCGvdj4NhBXkZ/uLUZNILAwwDQYJKoZIhvcNAQEL
    BQAwgZAxCzAJBgNVBAYTAkdCMRcwFQYDVQQIDA5Vbml0ZWQgS2luZ2RvbTEOMAwG
    A1UEBwwFRGVyYnkxEjAQBgNVBAoMCU1vc3F1aXR0bzELMAkGA1UECwwCQ0ExFjAU
    BgNVBAMMDW1vc3F1aXR0by5vcmcxHzAdBgkqhkiG9w0BCQEWEHJvZ2VyQGF0Y2hv
    by5vcmcwHhcNMjAwNjA5MTEwNjM5WhcNMzAwNjA3MTEwNjM5WjCBkDELMAkGA1UE
    BhMCR0IxFzAVBgNVBAgMDlVuaXRlZCBLaW5nZG9tMQ4wDAYDVQQHDAVEZXJieTES
    MBAGA1UECgwJTW9zcXVpdHRvMQswCQYDVQQLDAJDQTEWMBQGA1UEAwwNbW9zcXVp
    dHRvLm9yZzEfMB0GCSqGSIb3DQEJARYQcm9nZXJAYXRjaG9vLm9yZzCCASIwDQYJ
    KoZIhvcNAQEBBQADggEPADCCAQoCggEBAME0HKmIzfTOwkKLT3THHe+ObdizamPg
    UZmD64Tf3zJdNeYGYn4CEXbyP6fy3tWc8S2boW6dzrH8SdFf9uo320GJA9B7U1FW
    Te3xda/Lm3JFfaHjkWw7jBwcauQZjpGINHapHRlpiCZsquAthOgxW9SgDgYlGzEA
    s06pkEFiMw+qDfLo/sxFKB6vQlFekMeCymjLCbNwPJyqyhFmPWwio/PDMruBTzPH
    3cioBnrJWKXc3OjXdLGFJOfj7pP0j/dr2LH72eSvv3PQQFl90CZPFhrCUcRHSSxo
    E6yjGOdnz7f6PveLIB574kQORwt8ePn0yidrTC1ictikED3nHYhMUOUCAwEAAaNT
    MFEwHQYDVR0OBBYEFPVV6xBUFPiGKDyo5V3+Hbh4N9YSMB8GA1UdIwQYMBaAFPVV
    6xBUFPiGKDyo5V3+Hbh4N9YSMA8GA1UdEwEB/wQFMAMBAf8wDQYJKoZIhvcNAQEL
    BQADggEBAGa9kS21N70ThM6/Hj9D7mbVxKLBjVWe2TPsGfbl3rEDfZ+OKRZ2j6AC
    6r7jb4TZO3dzF2p6dgbrlU71Y/4K0TdzIjRj3cQ3KSm41JvUQ0hZ/c04iGDg/xWf
    +pp58nfPAYwuerruPNWmlStWAXf0UTqRtg4hQDWBuUFDJTuWuuBvEXudz74eh/wK
    sMwfu1HFvjy5Z0iMDU8PUDepjVolOCue9ashlS4EB5IECdSR2TItnAIiIwimx839
    LdUdRudafMu5T5Xma182OC0/u/xRlEm+tvKGGmfFcN0piqVl8OrSPBgIlb+1IKJE
    m/XriWr/Cq4h/JfB7NTsezVslgkBaoU=
    -----END CERTIFICATE-----

MQTT Component Base Configuration

All components in ESPHome that do some sort of communication through MQTT can have some overrides for specific options.

name: "Component Name"
# Optional variables:
qos: 1
retain: true
availability:
  topic: livingroom/status
  payload_available: online
  payload_not_available: offline
state_topic: livingroom/custom_state_topic
command_topic: livingroom/custom_command_topic
command_retain: false

Configuration variables:

  • name (Required, string): The name to use for the MQTT Component.

  • qos (Optional, int): The [Quality of Service](https://www.hivemq.com/blog/mqtt-essentials-part-6-mqtt-quality-of-service-levels/) level for publishing. Defaults to 0.

  • retain (Optional, boolean): If all MQTT state messages should be retained. Defaults to true.

  • discovery (Optional, boolean): Manually enable/disable discovery for a component. Defaults to the global default.

  • availability (Optional): Manually set what should be sent to Home Assistant for showing entity availability. Default derived from global birth/last will message.

  • state_topic (Optional, string): The topic to publish state updates to. Defaults to <TOPIC_PREFIX>/<COMPONENT_TYPE>/<COMPONENT_NAME>/state.

    ESPHome will always publish a manually configured state topic, even if the component is internal. Use null to disable publishing the component’s state.

  • command_topic (Optional, string): The topic to subscribe to for commands from the remote. Defaults to <TOPIC_PREFIX>/<COMPONENT_TYPE>/<COMPONENT_NAME>/command.

    ESPHome will always subscribe to a manually configured command topic, even if the component is internal. Use null to disable subscribing to the component’s command topic.

  • command_retain (Optional, boolean): Whether MQTT command messages sent to the device should be retained or not. Default to false.

Warning

When changing these options and you’re using MQTT discovery, you will need to restart Home Assistant. This is because Home Assistant only discovers a device once in every Home Assistant start.

on_connect / on_disconnect Trigger

This trigger is activated when a connection to the MQTT broker is established or dropped.

mqtt:
  # ...
  on_connect:
    - switch.turn_on: switch1
  on_disconnect:
    - switch.turn_off: switch1

on_message Trigger

With this configuration option you can write complex automations whenever an MQTT message on a specific topic is received. To use the message content, use a lambda template, the message payload is available under the name x inside that lambda.

mqtt:
  # ...
  on_message:
    topic: my/custom/topic
    qos: 0
    then:
      - switch.turn_on: some_switch

Configuration variables:

  • topic (Required, string): The MQTT topic to subscribe to and listen for MQTT messages on. Every time a message with this exact topic is received, the automation will trigger.

  • qos (Optional, int): The MQTT Quality of Service to subscribe to the topic with. Defaults to 0.

  • payload (Optional, string): Optionally set a payload to match. Only if exactly the payload you specify with this option is received, the automation will be executed.

Note

You can even specify multiple on_message triggers by using a YAML list:

mqtt:
  on_message:
     - topic: some/topic
       then:
         - # ...
     - topic: some/other/topic
       then:
         - # ...

Note

This action can also be used in lambdas:

mqtt:
  # Give the mqtt component an ID
  id: mqtt_client
id(mqtt_client).subscribe("the/topic", [=](const std::string &topic, const std::string &payload) {
    // do something with payload
});

on_json_message Trigger

With this configuration option you can write complex automations whenever a JSON-encoded MQTT message is received. To use the message content, use a lambda template, the decoded message payload is available under the name x inside that lambda.

The x object is of type JsonObject by the ArduinoJson library, and you can use all of the methods of that library to access data.

Basically, you can access elements by typing x["THE_KEY"] and save them into local variables. Please note that it’s a good idea to check if the key exists in the Json Object by calling containsKey first as the ESP will crash if an element that does not exist is accessed.

mqtt:
  # ...
  on_json_message:
    topic: the/topic
    then:
      - light.turn_on:
          id: living_room_lights

          transition_length: !lambda |-
            int length = 1000;
            if (x.containsKey("length"))
              length = x["length"];
            return length;

          brightness: !lambda "return x["bright"];"

          effect: !lambda |-
            const char *effect = "None";
            if (x.containsKey("effect"))
              effect = x["effect"];
            return effect;

Configuration variables:

  • topic (Required, string): The MQTT topic to subscribe to and listen for MQTT messages on. Every time a message with this exact topic is received, the automation will trigger.

  • qos (Optional, int): The MQTT Quality of Service to subscribe to the topic with. Defaults to 0.

Note

Due to the way this trigger works internally it is incompatible with certain actions and will trigger a compile failure. For example with the delay action.

Note

This action can also be used in lambdas:

mqtt:
  # Give the mqtt component an ID
  id: mqtt_client
id(mqtt_client).subscribe_json("the/topic", [=](const std::string &topic, JsonObject root) {
    // do something with JSON-decoded value root
});

mqtt.publish Action

Publish an MQTT message on a topic using this action in automations.

on_...:
  then:
    - mqtt.publish:
        topic: some/topic
        payload: "Something happened!"

    # Templated:
    - mqtt.publish:
        topic: !lambda |-
          if (id(reed_switch).state) return "topic1";
          else return "topic2";
        payload: !lambda |-
          return id(reed_switch).state ? "YES" : "NO";

Configuration options:

  • topic (Required, string, templatable): The MQTT topic to publish the message.

  • payload (Required, string, templatable): The message content.

  • qos (Optional, int, templatable): The Quality of Service level of the topic. Defaults to 0.

  • retain (Optional, boolean, templatable): If the published message should have a retain flag on or not. Defaults to false.

Note

This action can also be written in lambdas:

mqtt:
  # Give the mqtt component an ID
  id: mqtt_client
id(mqtt_client).publish("the/topic", "The Payload");

mqtt.publish_json Action

Publish a JSON-formatted MQTT message on a topic using this action in automations.

The JSON message will be constructed using the ArduinoJson library. In the payload option you have access to a root object which will represents the base object of the JSON message. You can assign values to keys by using the root["KEY_NAME"] = VALUE; syntax as seen below.

on_...:
  then:
    - mqtt.publish_json:
        topic: the/topic
        payload: |-
          root["key"] = id(my_sensor).state;
          root["greeting"] = "Hello World";

        # Will produce:
        # {"key": 42.0, "greeting": "Hello World"}

Configuration options:

  • topic (Required, string, templatable): The MQTT topic to publish the message.

  • payload (Required, lambda): The message content.

  • qos (Optional, int): The Quality of Service level of the topic. Defaults to 0.

  • retain (Optional, boolean): If the published message should have a retain flag on or not. Defaults to false.

Note

This action can also be written in lambdas:

mqtt:
  # Give the mqtt component an ID
  id: mqtt_client
id(mqtt_client).publish_json("the/topic", [=](JsonObject root) {
  root["something"] = id(my_sensor).state;
});

mqtt.connected Condition

This Condition checks if the MQTT client is currently connected to the MQTT broker.

on_...:
  if:
    condition:
      mqtt.connected:
    then:
      - logger.log: MQTT is connected!

Note

This action can also be written in lambdas:

mqtt:
  # Give the mqtt component an ID
  id: mqtt_client
if (id(mqtt_client)->is_connected()) {
  // do something if MQTT is connected
}

See Also
