Waveshare E-Paper Display

The waveshare_epaper display platform allows you to use some E-Paper displays sold by Waveshare with ESPHome. The 2.13” TTGO module and the Waveshare Cloud Module with an ESP32 on the board are supported as well. Depending on your specific revision of the TTGO board you might need to try out the -b73 or -b1 version (see below). The 1.54” Good Display gdew0154m09 as used in the M5Stack Core Ink is also supported. Similar modules sold by other vendors might also work but not have been tested yet. Currently only single-color E-Ink displays are implemented and of those only a few modules.

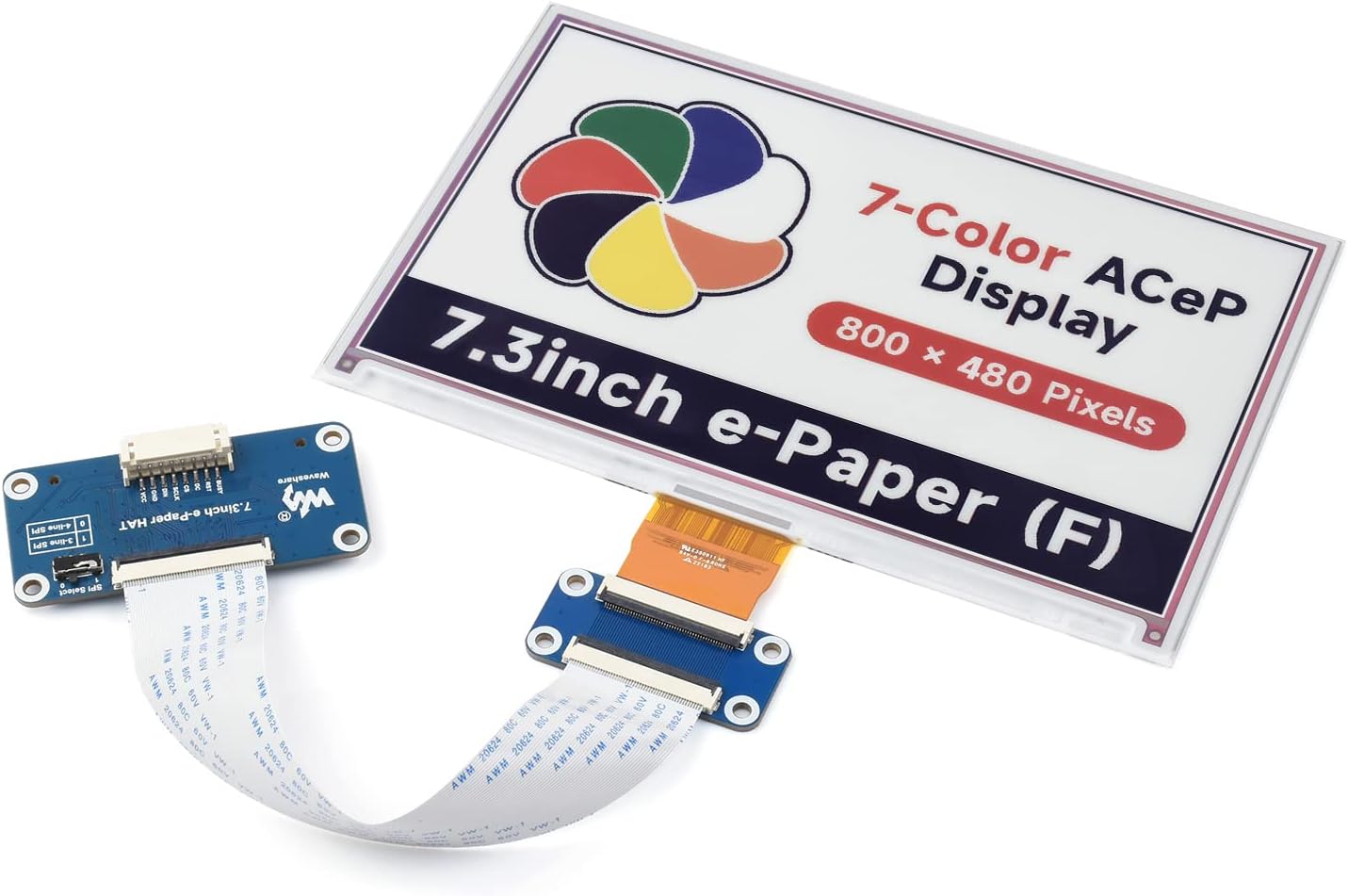

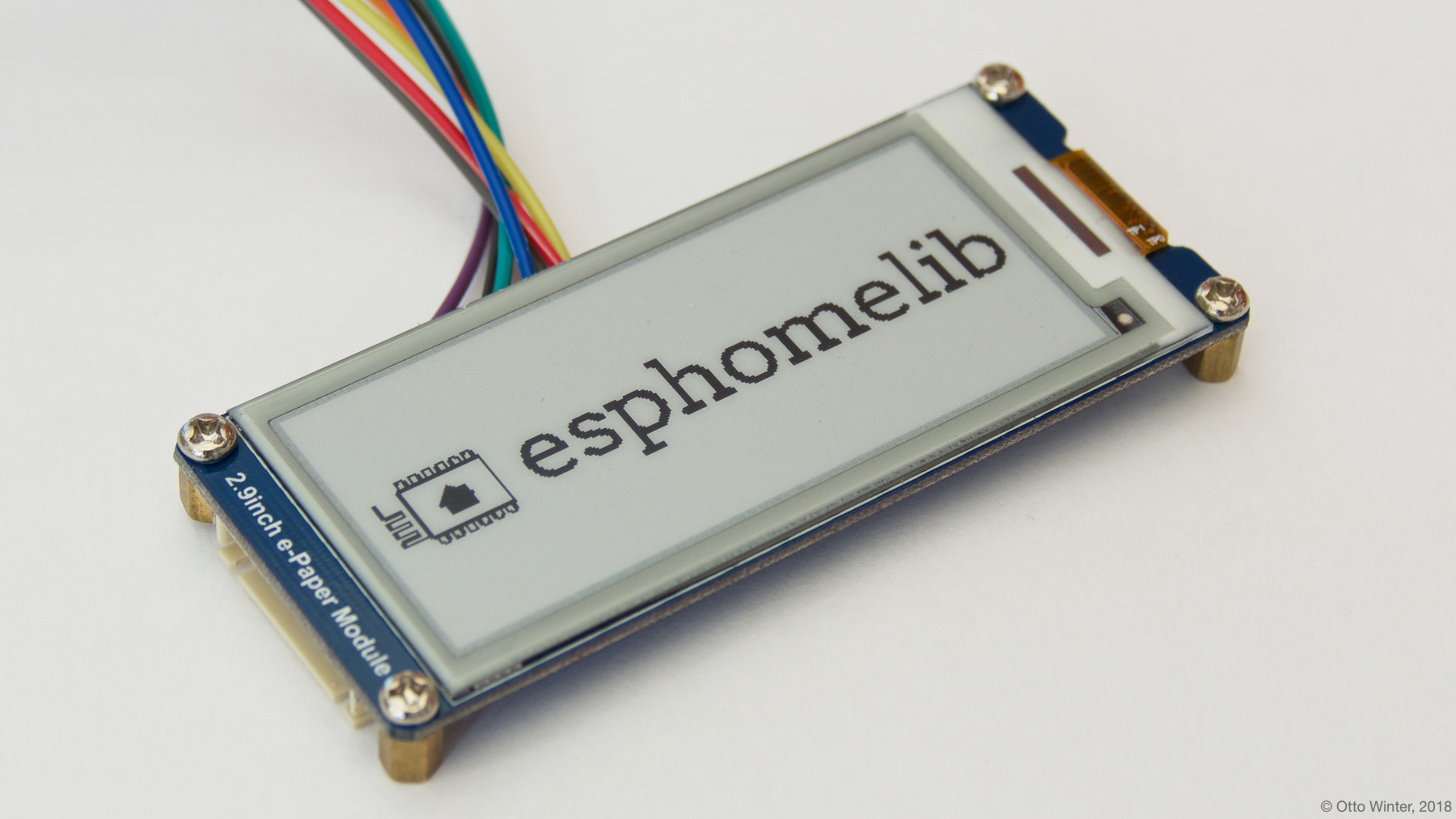

Waveshare E-Paper 2.9 Inch E-Paper Display.

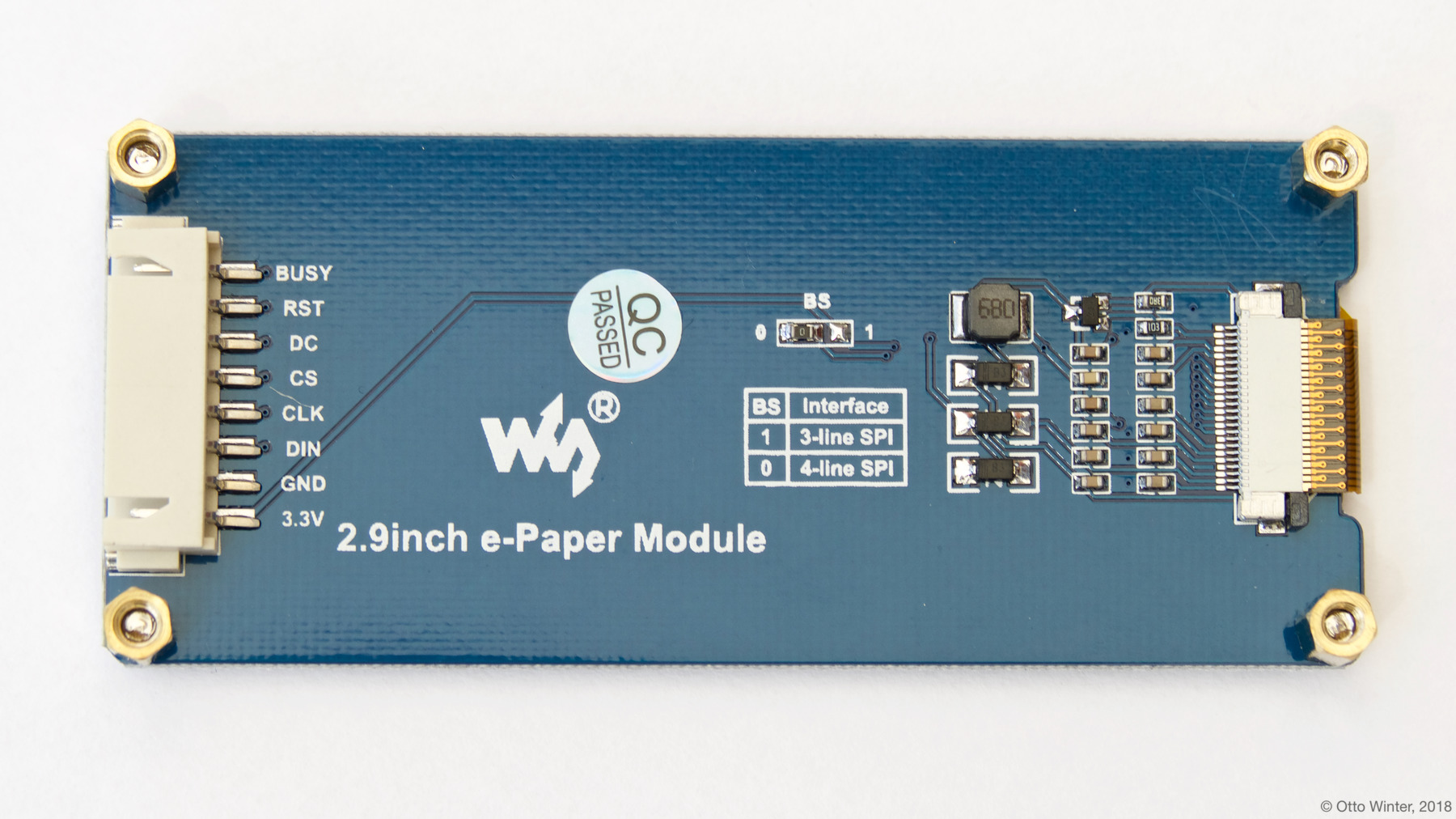

The communication ESPHome has chosen to use for this component is 4-wire SPI, as it’s the most stable and high-speed. So you need to make sure your board is set to the 4-wire SPI mode and have an spi: section in your configuration.

E-Paper Pin


ESPHome Option



















BUSY (Optional)



RESET (Optional)



# Example configuration entry
  - file: 'fonts/Comic Sans MS.ttf'
    id: font1
    size: 8

  clk_pin: D0
  mosi_pin: D1

  - platform: waveshare_epaper
    cs_pin: D2
    dc_pin: D3
    busy_pin: D4
    reset_pin: D5
    model: 2.90in
    full_update_every: 30
    lambda: |-
      it.print(0, 0, id(font1), "Hello World!");

Configuration variables:

  • cs_pin (Required, Pin Schema): The CS pin.

  • dc_pin (Required, Pin Schema): The DC pin.

  • model (Required): The model of the E-Paper display. Options are:

    • 1.54in

    • 1.54inv2

    • 2.13in - not tested

    • 2.13in-ttgo - T5_V2.3 tested. Also works for Wemos D1 Mini ePaper Shield 2.13 1.0.0 “LOLIN”

    • 2.13in-ttgo-b73 - T5_V2.3 with B73 display tested

    • 2.13in-ttgo-b74 - T5_V2.3.1 with B74 display tested

    • 2.13in-ttgo-b1 - T5_V2.3 with B1 display tested

    • 2.13in-ttgo-dke - T5_V2.3 with DKE group display (DEPG0213BN) tested

    • 2.13inv2 - 2.13in V2 display (Pico e-Paper 2.13v2 and Cloud Module)

    • 2.13inv3 - 2.13in V3 display (Pico e-Paper 2.13v3)

    • 2.70in - currently not working with the HAT Rev 2.1 version

    • 2.70inv2

    • 2.70in-b - Black/White/Red

    • 2.70in-bv2 - Black/White/Red

    • 2.90in

    • 2.90in-dke

    • 2.90inv2

    • 2.90inv2-r2 - 2.9in V2 display, but with different initialization and full/partial display refresh management than 2.90inv2

    • 2.90in-b - B/W rendering only

    • 2.90in-bV3 - B/W rendering only

    • 4.20in

    • 4.20in-bV2 - B/W rendering only

    • 5.83in

    • 5.83inv2

    • 7.50in

    • 7.50in-bV2 - also supports v3, B/W rendering only

    • 7.50in-bV3 - display with the ‘(V3)’ sticker on the back, B/W rendering only

    • 7.50in-bc - display with version sticker ‘(C)’ on the back, B/W rendering only

    • 7.50inV2 - Can’t use with an ESP8266 as it runs out of RAM

    • 7.50inV2alt (alternative version to the above 7.50inV2)

    • 7.50in-hd-b - Can’t use with an ESP8266 as it runs out of RAM

    • gdew029t5 - GooDisplay GDEW029T5, as used on the AdaFruit MagTag (previously incorrectly referred to as GDEY029T94)

    • 1.54in-m5coreink-m09 - GoodDisplay gdew0154m09, as used in the M5Stack Core Ink

    • 13.3in-k - 13.3in, with the K model, 960x680, B/W rendering only


The BUSY pin on the gdew0154m09 and Waveshare 7.50in V2 models must be inverted to prevent permanent display damage. Set the pin to inverted: true in the config.

  • busy_pin (Optional, Pin Schema): The BUSY pin. Defaults to not connected.

  • reset_pin (Optional, Pin Schema): The RESET pin. Defaults to not connected. Make sure you pull this pin high (by connecting it to 3.3V with a resistor) if not connected to a GPIO pin. The 2.13” B74 and V2 display variants require the reset pin.

  • rotation (Optional): Set the rotation of the display. Everything you draw in lambda: will be rotated by this option. One of (default), 90°, 180°, 270°.

  • full_update_every (Optional, int): E-Paper displays have two modes of switching to the next image: A partial update that only changes the pixels that have changed and a full update mode that first clears the entire display and then re-draws the image. The former is much quicker and nicer, but every so often a full update needs to happen because artifacts accumulate. On the 1.54in, 1.54inv2, 2.13in, 2.13inv2, 2.90in and 2.90inv2 models, you have the option to only do a full-redraw every x-th time using this option. Defaults to 30 on the described models and a full update for all other models.

  • reset_duration (Optional, Time): Duration for the display reset operation. Defaults to 200ms. Setting this value to 2ms may resolve issues with newer e-Paper Driver modules (e.g. Rev 2.1).

  • lambda (Optional, lambda): The lambda to use for rendering the content on the display. See Display Rendering Engine for more information.

  • update_interval (Optional, Time): The interval to re-draw the screen. Defaults to 1s, use never to only manually update the screen via component.update.

  • pages (Optional, list): Show pages instead of a single lambda. See Display Pages.

  • spi_id (Optional, ID): Manually specify the ID of the SPI Component if you want to use multiple SPI buses.

  • id (Optional, ID): Manually specify the ID used for code generation.
