The NodeMCU board is fully supported by ESPHome. Simply select
the ESPHome wizard asks you for your platform and
nodemcuv2 as the board type.
Most NodeMCU that can be purchased now are version 2 or upwards. If you’re using an
original v1 board, set the board type to
# Example configuration entry esphome: name: livingroom esp8266: board: nodemcuv2

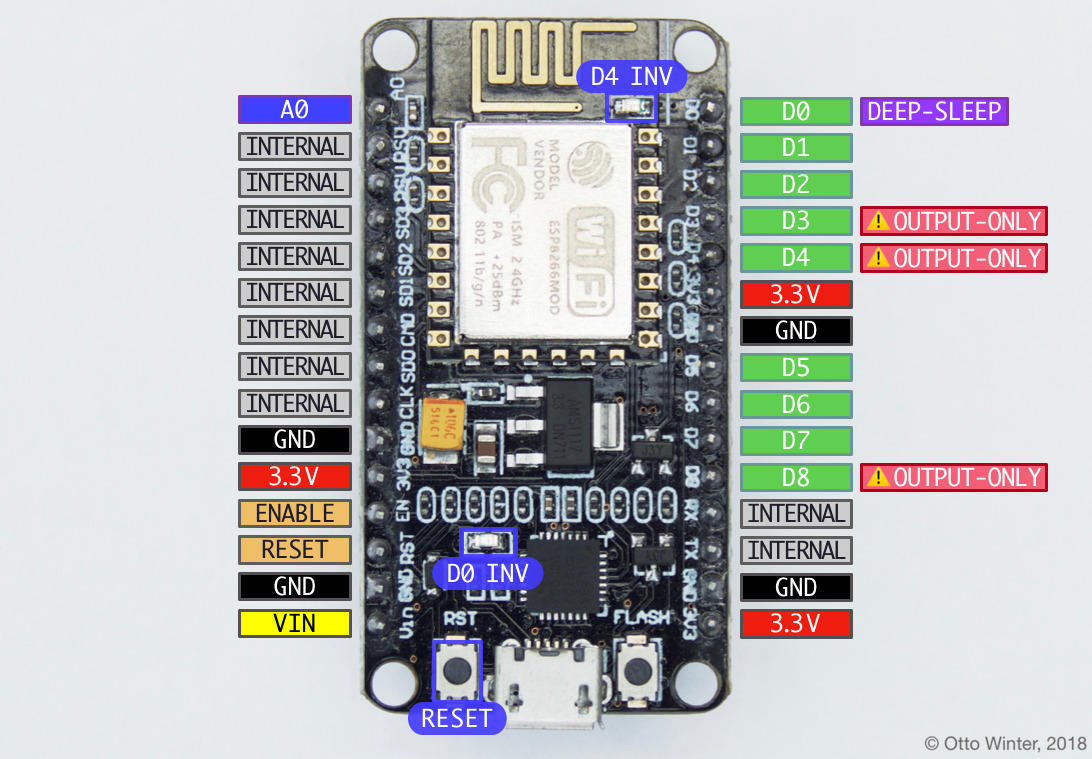

The NodeMCU’s pin numbering as seen on the board (the
D0 etc pins) is different from
the internal pin numbering. For example, the
D3 pin number maps to the internal
GPIO0 pin. Fortunately ESPHome knows the mapping from the on-board pin numbers
to the internal pin numbering, but you need to prefix the pin numbers with
D as in
the image below in order for this automatic mapping to occur.
In general, it is best to just use the
D1, … pin numbering to avoid confusion
Note that in certain conditions you can use the pins marked as
INTERNAL in above image.
D0also can be used to wake the device up from deep sleep if the pin is connected to the
RESETpin. On some boards
D0is additionally connected to the LED next to the UART chip, but in an inverted mode.
D8are used on startup to determine the boot mode, therefore these pins should not be pulled low on startup. You can, however, still use them as output pins.
D4additionally is connected to the blue LED next to the antenna, but in an inverted mode.
A0: This pin can be used as a normal GPIO pin (like
D1etc) but additionally can measure voltages from 0 to 1.0V using the Analog To Digital Sensor.
VIN: This board can be powered by an external power supply by using this pin. Supply a voltage depends on the board you use. Some boards support up to 12V, some up to 5V.
RESET: When these pins are triggered, the board resets. The difference between the pins is how they can handle voltages above 3.3V.
# Example configuration entry esphome: name: livingroom esp8266: board: nodemcuv2 binary_sensor: - platform: gpio name: "Pin D0" pin: D0
