BMP085 Temperature+Pressure Sensor

The BMP085 sensor platform allows you to use your BMP085 (datasheet, adafruit) and BMP180 (datasheet, adafruit) temperature and pressure sensors with esphomelib. The I²C is required to be set up in your configuration for this sensor to work.

https://d33wubrfki0l68.cloudfront.net/85cbe26d7efb03c84a776bf0f871d1c62556a1ed/0f8d5/_images/bmp180-full.jpg

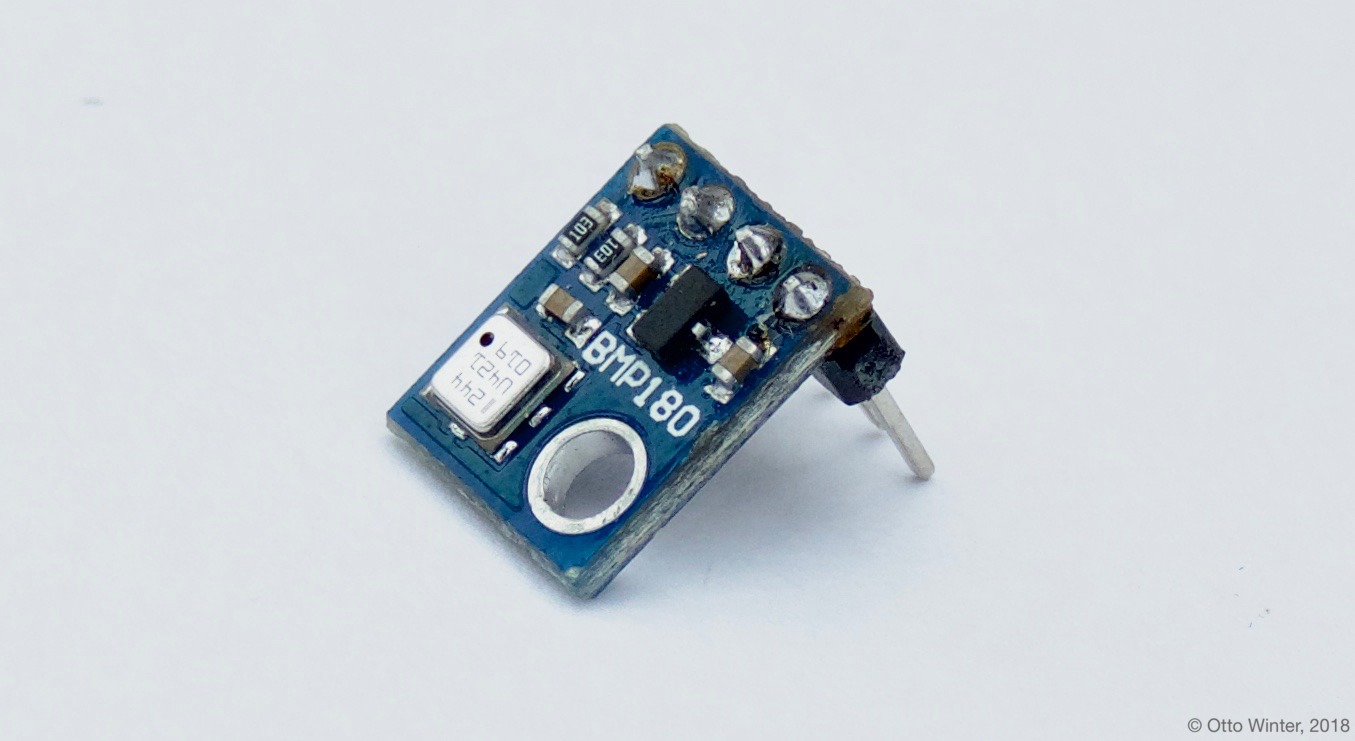

BMP180 Temperature & Pressure Sensor.

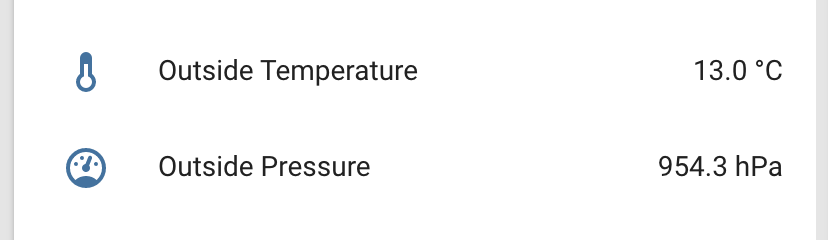

https://d33wubrfki0l68.cloudfront.net/334f444029c221c5a06b24ae7ae0767b71763654/0d2c2/_images/temperature-pressure.png
# Example configuration entry
sensor:
  - platform: bmp085
    temperature:
      name: "Outside Temperature"
    pressure:
      name: "Outside Pressure"
    update_interval: 60s

Configuration variables:

  • temperature (Required): The information for the temperature sensor.
    • name (Required, string): The name for the temperature sensor.
    • id (Optional, ID): Set the ID of this sensor for use in lambdas.
    • All other options from Sensor and MQTT Component.
  • pressure (Required): The information for the pressure sensor.
    • name (Required, string): The name for the pressure sensor.
    • id (Optional, ID): Set the ID of this sensor for use in lambdas.
    • All other options from Sensor and MQTT Component.
  • address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x77.
  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.
