BME680 Temperature+Pressure+Humidity+Gas Sensor via BSEC

Component/Hub

The bme680_bsec sensor platform allows you to use your BME680 (datasheet, Adafruit, Pimoroni) temperature, pressure and humidity and gas sensors with ESPHome via the Bosch Sensortec Environmental Cluster (BSEC) software library. The use of Bosch’s proprietary algorithms provide an Index for Air Quality (IAQ) measurement derived from the gas resistance sensor’s response to specific Volatile Organic Compounds (VOC). The BSEC software also provides estimated values for CO₂ and Breath Volatile Organic Compounds (b-VOC) using a correlation between VOC and CO₂ in a human’s exhaled breath.

Note

The BSEC library is only available for use after accepting its software license agreement. By enabling this component, you are explicitly agreeing to the terms of the BSEC license agreement. You must not distribute any compiled firmware binaries that include this component.

The I²C is required to be set up in your configuration for this sensor to work.

../../_images/bme680-full.jpg

BME680 Temperature, Pressure, Humidity & Gas Sensor.

# Minimal example configuration with common sensors
i2c:

bme680_bsec:

sensor:
  - platform: bme680_bsec
    temperature:
      name: "BME680 Temperature"
    pressure:
      name: "BME680 Pressure"
    humidity:
      name: "BME680 Humidity"
    iaq:
      name: "BME680 IAQ"
      id: iaq
    co2_equivalent:
      name: "BME680 CO2 Equivalent"
    breath_voc_equivalent:
      name: "BME680 Breath VOC Equivalent"

text_sensor:
  - platform: bme680_bsec
    iaq_accuracy:
      name: "BME680 IAQ Accuracy"

  - platform: template
    name: "BME680 IAQ Classification"
    icon: "mdi:checkbox-marked-circle-outline"
    lambda: |-
      if ( int(id(iaq).state) <= 50) {
        return {"Excellent"};
      }
      else if (int(id(iaq).state) >= 51 && int(id(iaq).state) <= 100) {
        return {"Good"};
      }
      else if (int(id(iaq).state) >= 101 && int(id(iaq).state) <= 150) {
        return {"Lightly polluted"};
      }
      else if (int(id(iaq).state) >= 151 && int(id(iaq).state) <= 200) {
        return {"Moderately polluted"};
      }
      else if (int(id(iaq).state) >= 201 && int(id(iaq).state) <= 250) {
        return {"Heavily polluted"};
      }
      else if (int(id(iaq).state) >= 251 && int(id(iaq).state) <= 350) {
        return {"Severely polluted"};
      }
      else if (int(id(iaq).state) >= 351) {
        return {"Extremely polluted"};
      }
      else {
        return {"error"};
      }

Configuration variables:

  • address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x76. Another address can be 0x77.

  • temperature_offset (Optional, float): Temperature offset if device is in enclosure and reads too high. This value is subtracted from the reading (e.g. if the sensor reads 5°C higher than expected, set this to 5) and also corrects the relative humidity readings. Defaults to 0.

  • iaq_mode (Optional, string): IAQ calculation mode. Default is static for static applications (e.g. fixed indoor devices). Can be mobile for mobile applications (e.g. carry-on devices).

  • supply_voltage (Optional, string): Supply voltage of the sensor. Default is 3.3V. Can be set to 1.8V if your sensor is 1.8V-powered (e.g. the Pimoroni PIM357 BME680 Breakout module).

  • sample_rate (Optional, string): Sample rate. Default is lp for low power consumption, sampling every 3 seconds. Can be ulp for ultra-low power, sampling every 5 minutes. This controls the sampling rate for gas-dependent sensors and will govern the interval at which the sensor heater is operated. By default, this rate will also be used for temperature, pressure, and humidity sensors but these can be overridden on a per-sensor level if required.

  • state_save_interval (Optional, Time): The minimum interval at which to save calibrated BSEC algorithm state to flash so that calibration doesn’t have to start from zero on device restart. Defaults to 6h.

  • id (Optional, ID): Manually specify the ID used for code generation. Use this ID in the sensor section to refer to the correct BME680 if you have more than one device. This will also be used to refer to the calibrated BSEC algorithm state saved to flash.

Sensor

Configuration variables:

  • bme680_bsec_id (Optional, ID): Sets the ID of the bme680_bsec component to refer to. Useful when working with multiple devices.

  • temperature (Optional): The information for the temperature sensor.

    • name (Required, string): The name for the temperature sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • sample_rate (Optional, string): Optional sample rate override for this sensor. Can be lp for low power consumption, sampling every 3 seconds or ulp for ultra-low power, sampling every 5 minutes.

    • All other options from Sensor.

  • pressure (Optional): The information for the pressure sensor.

    • name (Required, string): The name for the pressure sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • sample_rate (Optional, string): Optional sample rate override for this sensor. Can be lp for low power consumption, sampling every 3 seconds or ulp for ultra-low power, sampling every 5 minutes.

    • All other options from Sensor.

  • humidity (Optional): The information for the humidity sensor.

    • name (Required, string): The name for the humidity sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • sample_rate (Optional, string): Optional sample rate override for this sensor. Can be lp for low power consumption, sampling every 3 seconds or ulp for ultra-low power, sampling every 5 minutes.

    • All other options from Sensor.

  • gas_resistance (Optional): The information for the gas sensor.

    • name (Required, string): The name for the gas resistance sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • iaq (Optional): The information for the IAQ sensor.

    • name (Required, string): The name for the IAQ sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • iaq_accuracy (Optional): The information for the numeric IAQ accuracy sensor.

    • name (Required, string): The name for the IAQ accuracy sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • co2_equivalent (Optional): The information for the CO₂ equivalent sensor.

    • name (Required, string): The name for the CO₂ equivalent sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

  • breath_voc_equivalent (Optional): The information for the Breath VOC equivalent humidity sensor.

    • name (Required, string): The name for the Breath VOC equivalent sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from Sensor.

Text Sensor

Accuracy can be reported in text format.

Configuration variables:

  • bme680_bsec_id (Optional, ID): Sets the ID of the bme680_bsec component to refer to. Useful when working with multiple devices.

  • iaq_accuracy (Optional): The information for the IAQ accuracy sensor. Shows: Stabilizing, Uncertain, Calibrating, Calibrated.

    • name (Required, string): The name for the IAQ accuracy sensor.

    • id (Optional, ID): Set the ID of this sensor for use in lambdas.

    • All other options from TextSensor.

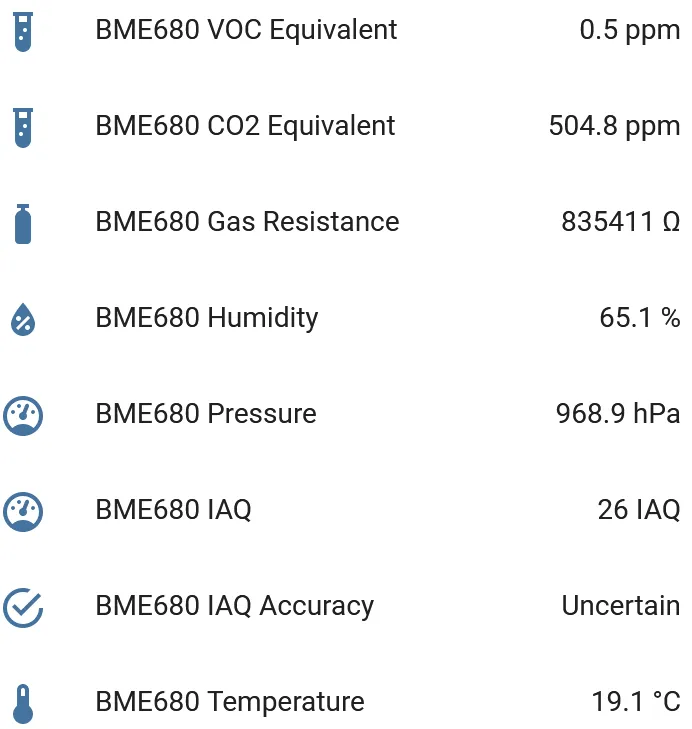

../../_images/bme680-bsec-ui.png

Advanced configuration

The following configuration shows all the available sensors and optional settings for the component. It also includes an example of filtering to guard against outliers, limit the number of updates sent to home assistant and reduce storage requirements in other systems such as influxdb used to store historical data.

For each sensor, all other options from Sensor and TextSensor are also available for filtering, automation and so on.

bme680_bsec:
    # id
    # -----------
    # Identifier for this component, useful when working with multiple devices.
    # Must be unique, and can be used in the sensor sections to refer to the correct device.
    # Default: auto-computed
    id: bme680_internal

    # i2c address
    # -----------
    # Common values are:
    # - 0x76
    # - 0x77
    # Default: 0x76
    address: 0x76

    # Temperature offset
    # ------------------
    # Useful if device is in enclosure and reads too high
    # For example, if it reads 5C too high, set this to 5
    # This also corrects the relative humidity readings
    # Default: 0
    temperature_offset: 0

    # IAQ calculation mode
    # --------------------
    # Available options:
    # - static (for fixed position devices)
    # - mobile (for on a person or other moveable devices)
    # Default: static
    iaq_mode: static

    # Supply voltage
    # --------------------
    # Available options:
    # - 3.3V
    # - 1.8V
    # Default: 3.3V
    supply_voltage: 3.3V

    # Sample rate
    # -----------
    # Available options:
    # - lp (low power - samples every 3 seconds)
    # - ulp (ultra-low power - samples every 5 minutes)
    # Default: lp
    sample_rate: ulp

    # Interval at which to save BSEC state
    # ------------------------------------
    # Default: 6h
    state_save_interval: 6h

sensor:
  - platform: bme680_bsec
    # ID of the bme680_bsec component to use for the next sensors.
    # Useful when working with multiple devices
    bme680_bsec_id: bme680_internal

    temperature:
      # Temperature in °C
      name: "BME680 Temperature"
      sample_rate: lp
      filters:
        - median
    pressure:
      # Pressure in hPa
      name: "BME680 Pressure"
      sample_rate: lp
      filters:
        - median
    humidity:
      # Relative humidity %
      name: "BME680 Humidity"
      sample_rate: lp
      filters:
        - median
    gas_resistance:
      # Gas resistance in Ω
      name: "BME680 Gas Resistance"
      filters:
        - median
    iaq:
      # Indoor air quality value
      name: "BME680 IAQ"
      filters:
        - median
    iaq_accuracy:
      # IAQ accuracy as a numeric value of 0, 1, 2, 3
      name: "BME680 Numeric IAQ Accuracy"
    co2_equivalent:
      # CO2 equivalent estimate in ppm
      name: "BME680 CO2 Equivalent"
      filters:
        - median
    breath_voc_equivalent:
      # Volatile organic compounds equivalent estimate in ppm
      name: "BME680 Breath VOC Equivalent"
      filters:
        - median

text_sensor:
  - platform: bme680_bsec
    iaq_accuracy:
      # IAQ accuracy as a text value of Stabilizing, Uncertain, Calibrating, Calibrated
      name: "BME680 IAQ Accuracy"

Multiple sensors

The following configuration shows how to set up multiple BME680 devices. They can be configured to use the same I²C bus or to use different busses, but remember that the BME680 can only be set to operate on I²C address 0x76 or 0x77. There is no limit on the number of BME680 devices that can be connected.

# I2C bus for the BME680 devices
i2c:
  - id: "i2cbus_bme"
    sda: GPIO18
    scl: GPIO19
    scan: true

# BME680 devices using BSEC library
bme680_bsec:
  - id: bme680_internal
    i2c_id: "i2cbus_bme"
    address: 0x76
  - id: bme680_external
    i2c_id: "i2cbus_bme"
    address: 0x77

sensor:
  # Sensors for the internal BME680 device
  - platform: bme680_bsec
    bme680_bsec_id: bme680_internal
    temperature:
      name: "IN_Temp"
    pressure:
      name: "IN_Press"
    humidity:
      name: "IN_RH"
    iaq:
      name: "IN_IAQ"
    co2_equivalent:
      name: "IN_CO2eq"
    breath_voc_equivalent:
      name: "IN_VOCeq"

  # Sensors for the external BME680 device
  - platform: bme680_bsec
    bme680_bsec_id: bme680_external
    temperature:
      name: "OUT_Temperatura"
    pressure:
      name: "OUT_Pressione"
    humidity:
      name: "OUT_RH"
    iaq:
      name: "OUT_IAQ"
    co2_equivalent:
      name: "OUT_CO2eq"
    breath_voc_equivalent:
      name: "OUT_VOCeq"

text_sensor:
  # Text sensor for the internal BME680 device
  - platform: bme680_bsec
    bme680_bsec_id: bme680_internal
    iaq_accuracy:
      name: "IN_IAQaccuracy"

  # Text sensor for the external BME680 device
  - platform: bme680_bsec
    bme680_bsec_id: bme680_external
    iaq_accuracy:
      name: "OUT_IAQaccuracy"

Index for Air Quality (IAQ) Measurement

The measurements are expressed with an index scale ranging from 0 to 500. The index itself is deduced from tests using ethanol gas, as well as important VOC in the exhaled breath of healthy humans. The VOC values themselves are derived from several publications on breath analysis studies. The BSEC software library defines the levels as follows:

IAQ Index

Air Quality

0 - 50

Excellent

51 - 100

Good

101 - 150

Lightly polluted

151 - 200

Moderately polluted

201 - 250

Heavily polluted

251 - 350

Severely polluted

> 351

Extremely polluted

The selected b-VOC gasses are as follows:

Compound

Molar fraction

Ethane

5 ppm

Isoprene

10 ppm

Ethanol

10 ppm

Acetone

50 ppm

Carbon Monoxide

15 ppm

IAQ Accuracy and Calibration

The BSEC software automatically calibrates in the background to provide consistent IAQ performance. The calibration process considers the recent measurement history so that a value of 50 corresponds to a “typical good” level and a value of 200 to a “typical polluted” level. The IAQ Accuracy sensor will give one of the following values:

  • Stabilizing: The device has just started, and the sensor is stabilizing (this typically lasts 5 minutes)

  • Uncertain: The background history of BSEC is uncertain. This typically means the gas sensor data was too stable for BSEC to clearly define its reference.

  • Calibrating: BSEC found new calibration data and is currently calibrating.

  • Calibrated: BSEC calibrated successfully.

Every state_save_interval, or as soon thereafter as full calibration is reached, the current algorithm state is saved to flash so that the process does not have to start from zero on device restart.
