Time-Based Cover

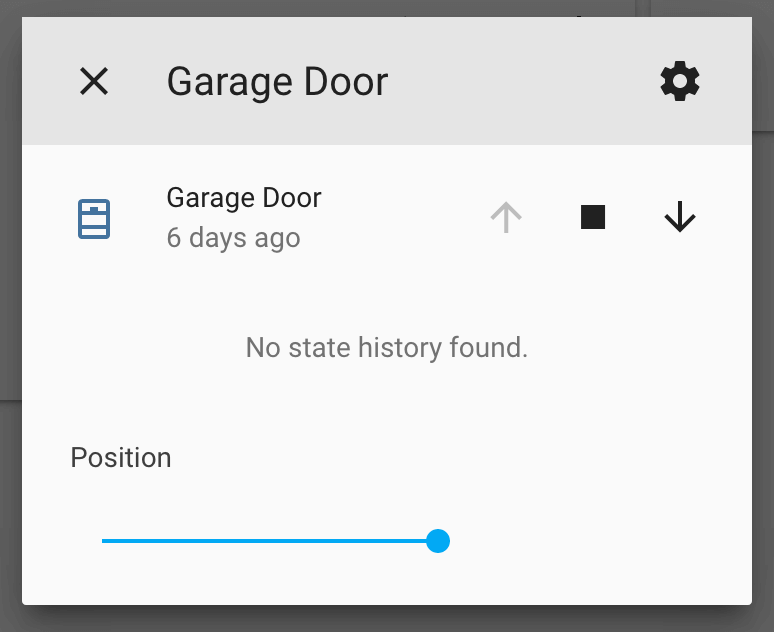

The time_based cover platform allows you to create covers with position control that do not have any position feedback. The state of the cover is thus always an assumed one, the current position is approximated with the time the cover has been moving in a direction.

../../_images/more-info-ui.png
# Example configuration entry
cover:
  - platform: time_based
    name: "Time-Based Cover"

    open_action:
      - switch.turn_on: open_cover_switch
    open_duration: 2.1min

    close_action:
      - switch.turn_on: close_cover_switch
    close_duration: 2min

    stop_action:
      - switch.turn_off: open_cover_switch
      - switch.turn_off: close_cover_switch

Configuration variables:

  • name (Required, string): The name of the cover.
  • open_action (Required, Action): The action that should be performed when the remote requests the cover to be opened.
  • open_duration (Required, Time): The amount of time it takes the cover to open up from the fully-closed state.
  • close_action (Optional, Action): The action that should be performed when the remote requests the cover to be closed.
  • close_duration (Required, Time): The amount of time it takes the cover to close from the fully-open state.
  • stop_action (Required, Action): The action that should be performed to stop the cover when the remote requests the cover to be stopped or when the cover has been opening/closing for the given durations.
  • has_built_in_endstop (Optional, boolean): Indicates that the cover has built in end stop detectors. In this configuration the stop_action is not perfomed when the open or close time is completed and if the cover is commanded to open or close the corresponding actions will be performed without checking current state. Defaults to False.
  • id (Optional, ID): Manually specify the ID used for code generation.
  • All other options from Cover.

Note

The stop button on the UI is always enabled even when the cover is stopped and each press on the button will cause the stop_action to be performed.
